AudioControl

AudioControl DM-608 Premium 6 Input 8 Output DSP Matrix Processor

AudioControl DM-608 Premium 6 Input 8 Output DSP Matrix Processor

Regular price $645.00 USD
Regular price Sale price $645.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
Foreign Speeds

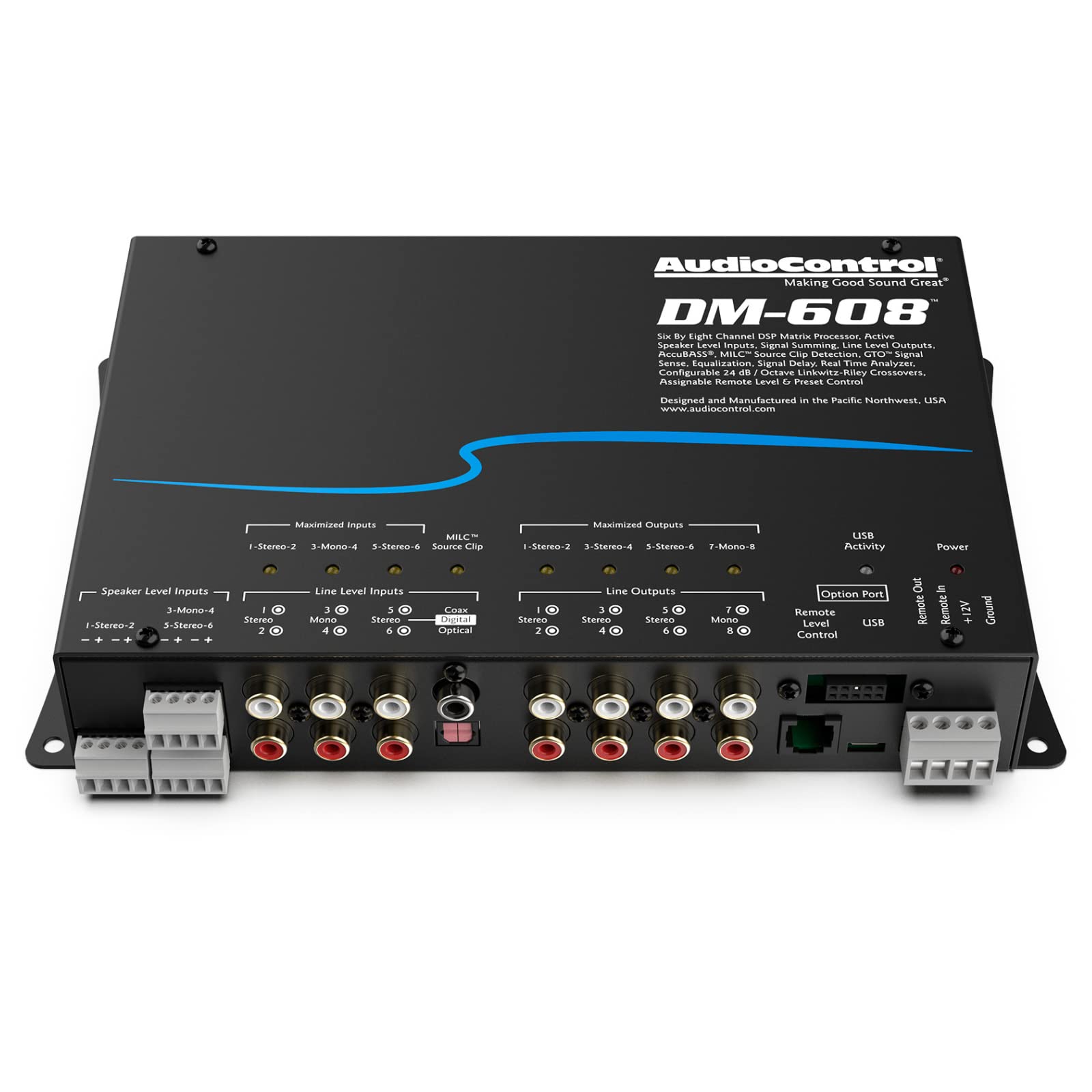

AudioControl DM-608

Digital signal processor — 6 inputs, 8 outputs



Signal processing makes it sound exactly the way you want

Smart-User DSP software

Smart-User DSP tuning software on a laptop (DM-810 version shown)

AudioControl designed their DM-608 digital signal processor to integrate into just about any car stereo system, to correct factory sound processing, and to deliver customized, high-fidelity audio to your aftermarket amps, speakers, and subs. You make adjustments and save settings  via your laptop (PC or Mac).

Serious audio adjustment

The Smart-User DSP software package includes Linkwitz-Riley crossovers, 30-band graphic equalizers, parametric filters, time delay/alignment for inputs and outputs, phase correction, AccuBass™ bass correction, and real-time analyzers (RTA) for the inputs and outputs so you can visually confirm the improvements in the sound.

The matrix is your friend

The DM-608 is "matrix-able," giving you the ability to combine and route any input to any output. So, if your car's factory system has separate pre-filtered, time-aligned, or amplified signals going to factory subs, mids, and tweeters, for instance, the DM-608 can combine them into one smooth, unified signal for you to balance, align, and tune for your better-sounding aftermarket speakers and subs.

Convenient features

Onboard LEDs indicate optimized signal flow for inputs and outputs, plus give you a warning when a source is too loud and causing distortion. An optional ACR-3 wired remote controller lets you select sources, control levels, and recall up to four preset tunings from your front seat. An optional Bluetooth® adapter lets you stream music and control the digital processing wirelessly from your compatible portable device.

FEATURES

  • 6 Input Channels, 8 Outputs - Input and Output RTA for Precise and Informed Tuning
  • All controls and adjustments accessible on your laptop (PC or Mac) via USB connection (AudioControl's Smart-User DSP software included)
  • Variable high-pass, low-pass, and bandpass filters (20-20,000 Hz at 12 or 24 dB/octave)
  • GTO signal-sensing turn-on - MILC (Maximum Input Level Control) LED optimization and clip indicators
  • AccuBASS, Signal Summing, Signal Delay, 12 and 24 dB/Octave Crossovers, 30 Band Equalizer
