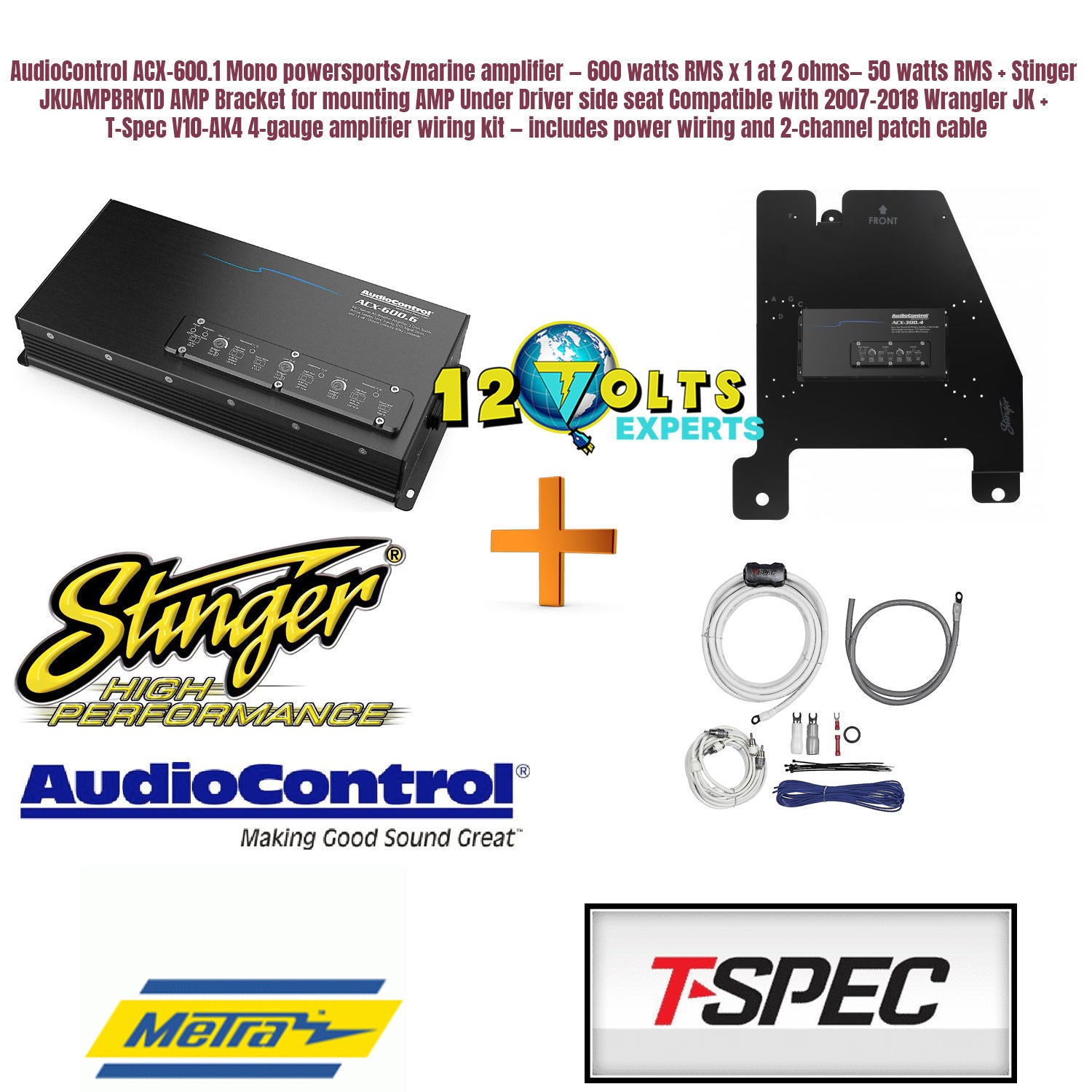

AudioControl ACX-600.1 Mono powersports/marine amplifier — 600 watts RMS x 1 at 2 ohms— 50 watts RMS + Stinger JKUAMPBRKTD AMP Bracket for mounting AMP Under Driver side seat Compatible with 2007-2018 Wrangler JK + T-Spec V10-AK4 4-gauge amplifier wiring

AudioControl ACX-600.1 Mono powersports/marine amplifier — 600 watts RMS x 1 at 2 ohms— 50 watts RMS + Stinger JKUAMPBRKTD AMP Bracket for mounting AMP Under Driver side seat Compatible with 2007-2018 Wrangler JK +T-Spec V10-AK4 4-gauge amplifier wiring kit — includes power wiring and 2-channel patch cable

AudioControl ACX-600.1

Mono powersports/marine amplifier — 600 watts RMS x 1 at 2 ohms

Bass power survival

What's the point in installing an amp on your ATV if the amp won't survive when you spray off your vehicle after a day of fun in the dirt and mud? AudioControl's ACX-600.1 mono subwoofer amplifier carries an IPX6 waterproof rating, which means a powerful water jet spray won't hurt a thing. Construction details include conformal circuit board coatings, insulated gaskets for the control panel cover, and waterproof input, output, and power connections.

Play your bass loud and clear

The ACX-600.1 can send up to 600 watts RMS to your sub — plenty enough to feel  the bass pound clearly over the sounds of wind and motor. AudioControl's AccuBASS® processing plus low-pass and subsonic filters help you achieve the best bass tone possible for your subwoofer. This compact amp will fit almost anywhere in almost any kind of vehicle, and it features high-level inputs with signal-sensing turn-on, so it'll work with almost any stereo system.

Some practical features

To simplify setup, a "Maximized" LED indicates when you've set the amplifier's gain for optimum performance. An optional wired remote lets you control the bass volume from the driver's seat.

Product highlights:

mono powersports/marine amplifier

350 watts RMS x 1 at 4 ohms

600 watts RMS x 1 at 2 ohms

full-range Class D amp technology

frequency response: 26-20,000 Hz

selectable low-pass filter (80 or 120 Hz, 12 dB/octave)

AccuBASS® processing improves bass performance

optional ACR-1 wired remote available

More Info:

IPX6 rated chassis will withstand power washing

fully sealed input, output, and power connections

preamp and speaker-level inputs

speaker-level inputs handle up to 12v Rms (about 36 watts)

GTO™ (Great Turn On) signal-sensing turn-on with speaker-level input

wiring, fuse, and hardware not included with amplifier

4-gauge power and ground leads and a 60A fuse recommended

dimensions: 10-1/8"W x 2-7/16"H x 5-3/8"D

warranty: 5 years

What's in the box:

Mono amplifier (attached 12" power/ground/input/output harnesses)

7" Power & ground harness

7" Speaker output harness

16.5' ACR-1 Remote Level Control cable w/ an RJ-14 plug on one end and a male 3.5mm plug on other end (ACR-1 Remote Level Control not included)

Power & ground connector (empty)

2 Crimp-on terminals for power & ground harness

Harness locking pin

2 Rubber grommets

Four 3/4" screws

Quickstart guide

What's in the box:

6-Channel amplifier (attached 12" power/ground/input/output harnesses)

7" Power & ground harness

Three 7" Speaker output harnesses

Power & ground connector (empty)

2 Crimp-on terminals for power & ground harness

Harness locking pin

2 Rubber grommets

Four 3/4" screws

Quickstart guide

T-Spec V10-AK4 4-gauge amplifier wiring kit — includes power wiring and 2-channel patch cable

Power up to specification

This V10-AK4 amplifier power wiring kit from T-Spec helps deliver the power you need to drive your music to the highest level. The kit includes 4-gauge power and ground wires, an 18-gauge turn-on lead, a 17-foot stereo patch cable, a fuse holder, and an assortment of hardware useful for your installation. T-Spec makes wiring products that meet all American National Standards Institute (ANSI) and Consumer Electronics Association (CEA) standards for size, strand-count, resistance, and insulation quality. With T-Spec wiring, your amps and speakers will get the energy they need to give you peak performance.

Oxygen-free virgin copper

Recycled copper often contains impurities that can impair conductivity, so T-Spec uses only oxygen-free non-recycled virgin copper in all their wire to maximize signal and power flow. The high strand count and special PVC blended jacket give T-Spec wire an extraordinary flexibility, making installation easier. The power and ground wires in this kit each come with a sturdy ring terminal machine-crimped to one end, ensuring a secure contact with your car's battery and chassis ground. T-Spec even pre-installed the fuse holder (with a 125-amp fuse included) inline on the power wire, for your safety and peace of mind.

Note: This wiring kit does not include speaker wire. You'll need to purchase that separately, in order to complete your amplifier installation.

Product highlights:

4-gauge amplifier wiring kit

17 feet of 4-gauge matte pearl power cable with ring terminal

3 feet of 4-gauge matte gray ground wire with ring terminal

17-foot 2-channel RCA patch cable (double twisted pair for superior noise reduction)

17 feet of 18-gauge blue turn-on lead wire

brass mini-ANL fuse holder with 125-amp fuse installed on power wire

all wires made of oxygen-free non-recycled copper

wires meet all ANSI and CEA standards

comes with an assortment of hardware including wire ties, a firewall bushing, and various crimp-on wire terminals

warranty: 1 year

What's in the box:

17' Length of 4 AWG OFC multi-strand power wire (ring terminal installed) w/ inline mini-ANL fuse holder and 125A mini-ANL fuse installed

3' Length of 4 AWG OFC mulit-strand ground wire w/ ring terminal

17' Length of blue 18 AWG remote turn-on wire

17' Stereo RCA patch cable

Two 4 AWG Crimp-on spade terminals

2 Spade terminal boots (white & black)

One 18 AWG crimp-on spade terminal

One 18 AWG crimp connector (red)

4 AWG firewall bushing

Eight 4" wire ties

Built tough and made specifically for Wrangler, this amplifier mounting bracket makes it easy to mount select Audio Control*, Phoenix Gold, Stinger, or can be customized for most aftermarket amplifiers under the seat in your Wrangle.

*AMPLIFIER SHOWN, NOT INCLUDED. Features

Fits 2007-2018 Wrangler JK Unlimited (4-door)

Made with 16-gauge corrosion-resistant steel with a corrosion-resistant powder coating to withstand harsh elements and prevent rusting

Pre Drilled and threaded amplifier mounting holes with supplied hardware simplify amplifier installation for select Audio Control, Phoenix Gold, or Stinger amplifiers

Can be custom drilled to universally mount other amplifiers or accessories under the seat

Uses the rear legs of the seat to secure the bracket into position

Also available for passenger side (JKUAMPBRKTP)

Lifetime Warranty

Compatible Amplifiers

Phoenix Gold GX1200.6

Stinger SPX700X4

Phoenix Gold MX Series

Stinger SPX1000X5

Stinger SPX350X2

Phoenix Gold Z 8”

Active Bass Enclosure*

Phoenix Gold GX800.4, GX1200.1

AudioControl ACX-300.4

AudioControl ACX-600.1

T-Spec V10-AK4

4-gauge amplifier wiring kit — includes power wiring and 2-channel patch cable

Power up to specification

This V10-AK4 amplifier power wiring kit from T-Spec helps deliver the power you need to drive your music to the highest level. The kit includes 4-gauge power and ground wires, an 18-gauge turn-on lead, a 17-foot stereo patch cable, a fuse holder, and an assortment of hardware useful for your installation. T-Spec makes wiring products that meet all American National Standards Institute (ANSI) and Consumer Electronics Association (CEA) standards for size, strand-count, resistance, and insulation quality. With T-Spec wiring, your amps and speakers will get the energy they need to give you peak performance.

Oxygen-free virgin copper

Recycled copper often contains impurities that can impair conductivity, so T-Spec uses only oxygen-free non-recycled virgin copper in all their wire to maximize signal and power flow. The high strand count and special PVC blended jacket give T-Spec wire an extraordinary flexibility, making installation easier. The power and ground wires in this kit each come with a sturdy ring terminal machine-crimped to one end, ensuring a secure contact with your car's battery and chassis ground. T-Spec even pre-installed the fuse holder (with a 125-amp fuse included) inline on the power wire, for your safety and peace of mind.

Note: This wiring kit does not include speaker wire. You'll need to purchase that separately, in order to complete your amplifier installation.

Product highlights:

4-gauge amplifier wiring kit

17 feet of 4-gauge matte pearl power cable with ring terminal

3 feet of 4-gauge matte gray ground wire with ring terminal

17-foot 2-channel RCA patch cable (double twisted pair for superior noise reduction)

17 feet of 18-gauge blue turn-on lead wire

brass mini-ANL fuse holder with 125-amp fuse installed on power wire

all wires made of oxygen-free non-recycled copper

wires meet all ANSI and CEA standards

comes with an assortment of hardware including wire ties, a firewall bushing, and various crimp-on wire terminals

warranty: 1 year

What's in the box:

17' Length of 4 AWG OFC multi-strand power wire (ring terminal installed) w/ inline mini-ANL fuse holder and 125A mini-ANL fuse installed

3' Length of 4 AWG OFC mulit-strand ground wire w/ ring terminal

17' Length of blue 18 AWG remote turn-on wire

17' Stereo RCA patch cable

Two 4 AWG Crimp-on spade terminals

2 Spade terminal boots (white & black)

One 18 AWG crimp-on spade terminal

One 18 AWG crimp connector (red)

4 AWG firewall bushing

Eight 4" wire ties
