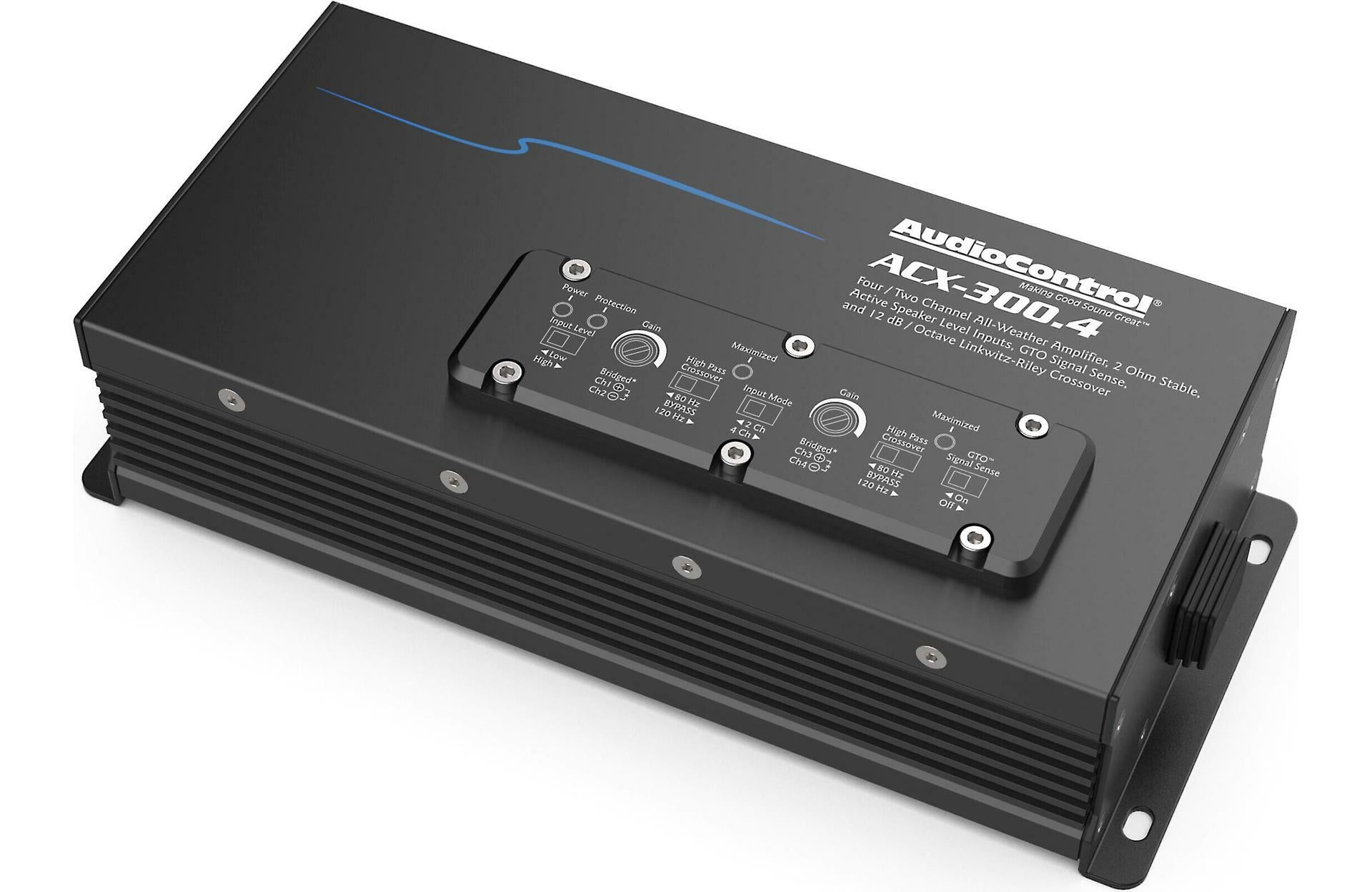

AudioControl ACX-300.4
4-channel powersports/marine amplifier — 50 watts RMS x 4+

Stinger JKUAMPBRKTD AMP Bracket for mounting AMP Under Driver side seat Compatible with 2007-2018 Wrangler JKU + Raptor R2AK4 4 Gauge Complete Amp Kit w/ RCA for Up to 1100W Systems

AudioControl ACX-300.4

4-channel powersports/marine amplifier — 50 watts RMS x 4

Waterproof power

One of the main issues with powersports amplifiers used to be that the amp wouldn't survive a thorough washing of your vehicle after a good day of dirty fun. AudioControl's ACX-300.4 four-channel amplifier carries an IPX6 waterproof rating, which means you can clean it off with a powerful water jet spray and it won't hurt a thing. Construction details include conformal circuit board coatings, insulated gaskets for the control panel cover, and waterproof input, output, and power connections.

Play your music loud and clear

The ACX-300.4 can send out 50 watts RMS per channel — plenty enough to hear your music clearly over the sounds of wind and motor. Like it loud? This amp can also operate in two-channel mode to power a pair of high-performance speakers with 150 watts RMS each.

Some practical features

This tiny, hand-size amp will fit almost anywhere in almost any kind of vehicle, and it features high-level inputs with signal-sensing turn-on, so it'll work with almost any stereo system. To simplify setup, a "Maximized" LEDs indicate when you've set the amplifier's gains for optimum performance.

Product highlights:

4-channel powersports/marine amplifier

50 watts RMS x 4 at 4 ohms

75 watts RMS x 4 at 2 ohms

150 watts RMS x 2 bridged at 4 ohms

Class D amp technology

selectable high-pass filter (bypass, 80, 120 Hz at 12 dB/octave) on front and rear channels

More Info:

IPX6 rated chassis will withstand power washing

waterproof input, output, and power connections

preamp and speaker-level inputs

GTO™ (Great Turn On) signal-sensing turn-on with speaker-level input

wiring and hardware not included with amplifier

8-gauge power and ground leads recommended

dimensions: 10-3/4"W x 2-7/16"H x 3-7/8"D

warranty: 5 years

What's in the box:

AudioControl ACX-300.4 owner's manual

4-Channel amplifier (attached 12" power/ground/input/output harnesses)

7" Power & ground harness (10 ga.)

Two 7" speaker output harnesses

Power & ground harness (empty)

2 Crimp-on terminals for power & ground harness

Harness locking pin

2 Rubber grommets

Four 3/4" screws

Quickstart guide

Raptor R2AK4 4 Gauge Complete Amp Kit w/ RCA for Up to 1100W Systems

BULK SERIES 4 GAUGE AMP KIT

Complete Amp Kit

4 AWG Amp Kit with RCA

For up to 1100W Systems

CCA (Copper Clad Aluminum)

Includes (1) One 17ft Twist RCA Cable, (1) One 17ft 4 AWG CCA Power Cable, (1) One 3ft 4 AWG CCA Ground Cable, (1) One 17ft 18 AWG Turn-On Wire, (1) One 20ft Side-by-Side Speaker Wire, (1) One ANL Fuse Holder with 100 Amp Fuse, (4) Four Nickel Plated 4 AWG Seamed Ring Terminals, (5) Five Nickel Plated 16-14 Gauge Spade Terminals and Hardware

Built tough and made specifically for Wrangler, this amplifier mounting bracket makes it easy to mount select Audio Control*, Phoenix Gold, Stinger, or can be customized for most aftermarket amplifiers under the seat in your Wrangle.

*AMPLIFIER SHOWN, NOT INCLUDED. Features

Fits 2007-2018 Wrangler JK Unlimited (4-door)

Made with 16-gauge corrosion-resistant steel with a corrosion-resistant powder coating to withstand harsh elements and prevent rusting

Pre Drilled and threaded amplifier mounting holes with supplied hardware simplify amplifier installation for select Audio Control, Phoenix Gold, or Stinger amplifiers

Can be custom drilled to universally mount other amplifiers or accessories under the seat

Uses the rear legs of the seat to secure the bracket into position

Also available for passenger side (JKUAMPBRKTP)

Lifetime Warranty

Compatible Amplifiers

Phoenix Gold GX1200.6

Stinger SPX700X4

Phoenix Gold MX Series

Stinger SPX1000X5

Stinger SPX350X2

Phoenix Gold Z 8”

Active Bass Enclosure*

Phoenix Gold GX800.4, GX1200.1

AudioControl ACX-300.4

AudioControl ACX-600.1
