AudioControl ACX-300.1 Mono Powersports/Marine Amplifier 300 Watts RMS x 1 2 Ohm + T-Spec ST-AK8 8GA Power Sport Amplifier Power Wiring Kit







AudioControl ACX-300.1 Mono Powersports/Marine Amplifier 300 Watts RMS x 1 2 Ohm + T-Spec ST-AK8 8GA Power Sport Amplifier Power Wiring Kit

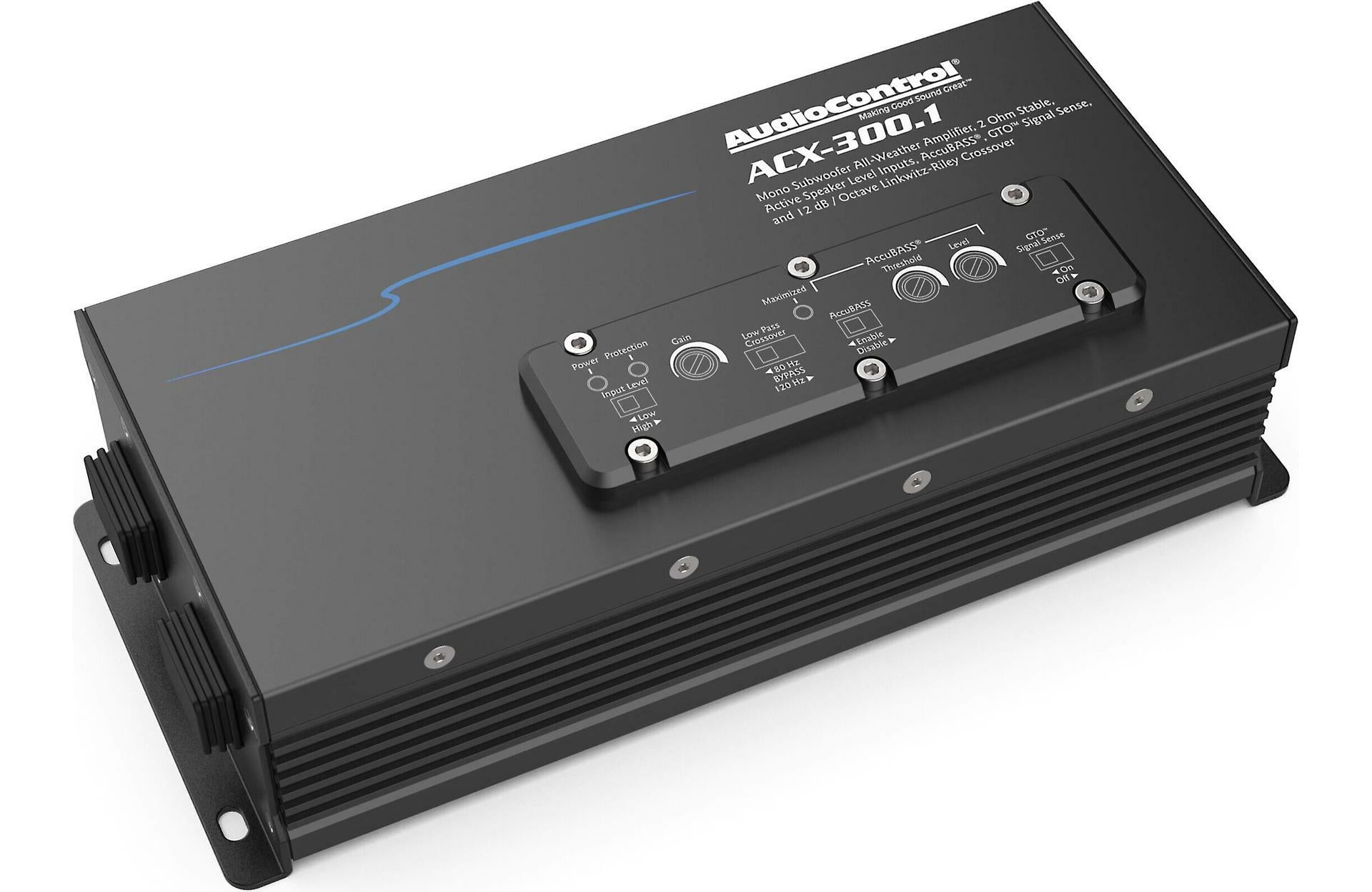

AudioControl ACX-300.1

Mono powersports/marine amplifier — 300 watts RMS x 1 at 2 ohms





Waterproof power

One of the main issues with powersports amplifiers used to be that the amp wouldn't survive when you washed off your vehicle after a good day of dirty fun. AudioControl's ACX-300.1 mono subwoofer amplifier carries an IPX6 waterproof rating, which means you can clean it off with a powerful water jet spray and it won't hurt a thing. Construction details include conformal circuit board coatings, insulated gaskets for the control panel cover, and waterproof input, output, and power connections.



Play your bass loud and clear

The ACX-300.1 can send out up to 300 watts RMS to your sub — plenty enough to hear the bass clearly over the sounds of wind and motor. This tiny, hand-size amp will fit almost anywhere in almost any kind of vehicle, and it features high-level inputs with signal-sensing turn-on, so it'll work with almost any stereo system. To simplify setup, a "Maximized" LED indicates when you've set the amplifier's gain for optimum performance.





Product highlights:

mono powersports/marine amplifier

175 watts RMS x 1 at 4 ohms

300 watts RMS x 1 at 2 ohms

Class D amp technology

frequency response: 26-22,000 Hz

selectable low-pass filter (bypass, 80, 120 Hz at 12 dB/octave)

fixed subsonic filter (24 Hz)

AccuBASS® processing improves bass performance

optional ACR-1 wired remote available

More Info:

IPX6 rated chassis will withstand power washing

fully sealed input, output, and power connections

preamp and speaker-level inputs

GTO™ (Great Turn On) signal-sensing turn-on with speaker-level input

wiring and hardware not included with amplifier

8-gauge power and ground leads recommended

dimensions: 10-3/4"W x 2-7/16"H x 3-7/8"D

warranty: 5 years

MFR # ACX-300.1







What's in the box:





Mono amplifier (attached 12" power/ground/input/output harnesses)

7" Power & ground harness (10 ga.)

7" Speaker output harness

16.5' ACR-1 Remote Level Control cable w/ a RJ-14 plug on one end and a male 3.5mm plug on other end (ACR-1 Remote Level Control not included)

Power & ground connector (empty)

2 Crimp-on terminals for power & ground harness

Harness locking pin

2 Rubber grommets

Four 3/4" screws

Quickstart guide









T-Spec ST-AK8

8GA Power Sport Amplifier Power Wiring Kit



Product highlights

• Designed tor motorcycles

•6 toot length of OFC power and ground wire

• T-Spec V8MANL fuse holder and 30 amp fuse

•Pre-terminated ring terminals make connections to the battery simple

•Two 4 foot pieces of 16 gauge OFC speaker wire







General Features:

Designed tor motorcycles

6 toot length of red and black OFC power and ground wire

V8MANL fuse holder and 30 amp fuse protected by a black nylon braid

Pre-terminated ring terminals make connections to the battery simple

Two 4 foot pieces of 16 gauge OFC speaker wire protected by black nylon mesh

All the necessary installation hardware is included along wtth a 4 × 6 inch hook and loop mounting pad for micro-amplifiers to hold the amplifier securely in place

Authorized Internet Dealer

1-year Manufacturer's Warranty





Specifications & Details

Amplifier Kit Specifications

Amp Kit Type

Power

Number of Amplifiers Supported

1

Maximum Recommended Power Handling

Power/Ground Wire Size

8 gauge

Power Wire Length

6 feet

Power Wire Color

Red

Ground Wire Length

6 feet

Ground Wire Color

Black

Speaker Wire Included

Yes

Speaker Wire Gauge

Speaker Wire Length

4 feet

Speaker Wire Color

Remote Wire Gauge

Interconnect (RCA) Signal Cables Included

No

RCA Cable Length

Fuse Size

30A
