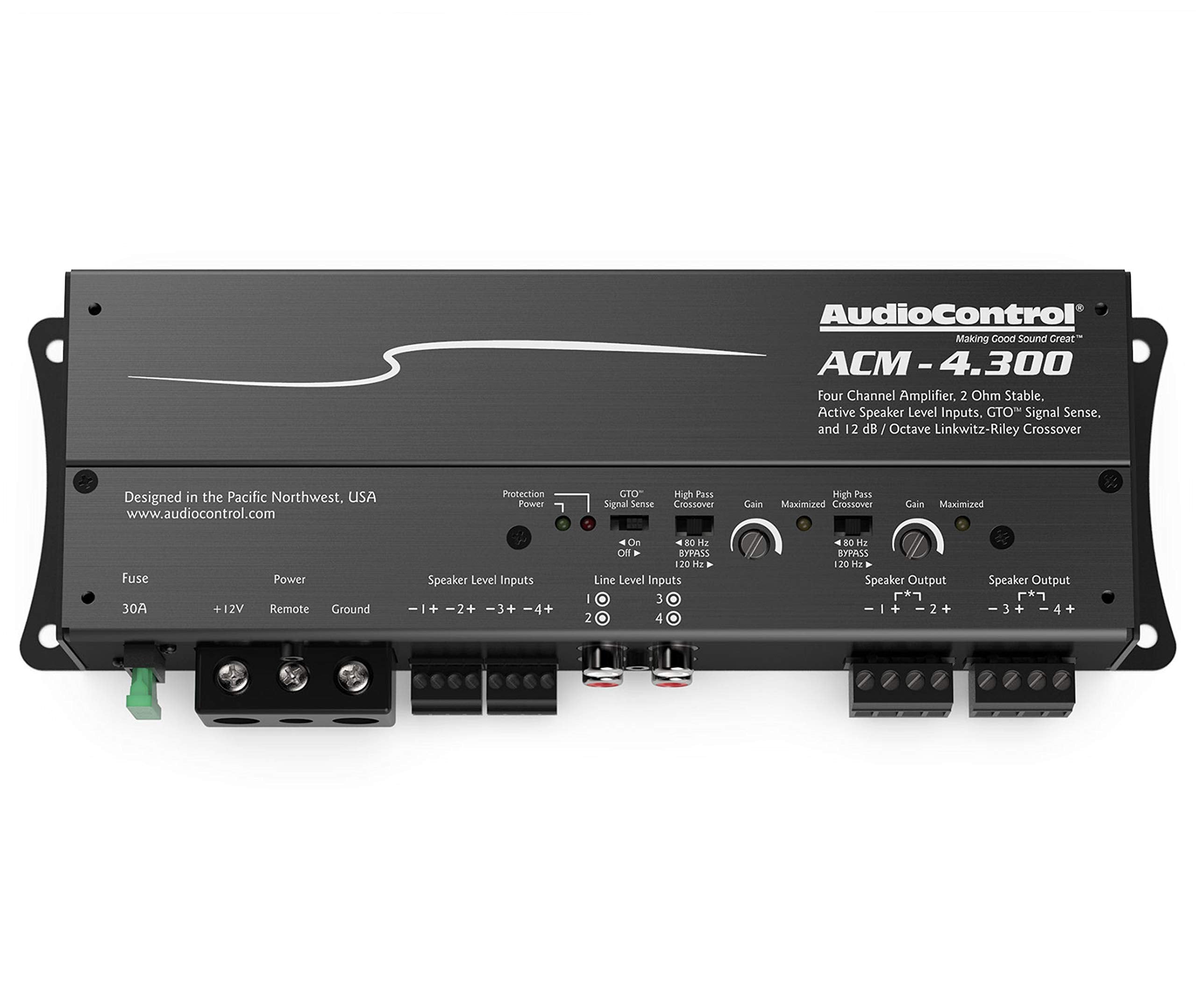

AudioControl ACM-4.300 ACM Series compact 4-channel car amplifier — 50 watts RMS

AudioControl ACM-4.300

ACM Series compact 4-channel car amplifier — 50 watts RMS x 4

Play your music loud and clear

Power makes good speakers sound great, but where to put an amp in your smaller vehicle? AudioControl comes to the rescue with their compact ACM-4.300 4-channel amp, which delivers 50 watts RMS per channel — perfect for two sets of speakers. This tiny, hand-size amplifier will fit almost anywhere in almost any kind of vehicle, improving the impact and clarity of your music. Even better, it features high-level inputs with signal-sensing turn-on, so it'll work with almost any stereo system, even one using a factory radio.

Versatility and practical features

To simplify setup, a "Maximized" LED indicates when you've set the amplifier's gain for optimum performance. Like it loud? This amp can also operate in two-channel mode to power a pair of high-performance speakers with 150 watts RMS each.

Product highlights:

4-channel car amplifier

50 watts RMS x 4 at 4 ohms (75 watts RMS x 4 at 2 ohms)

150 watts RMS x 2 bridged at 4 ohms

Class D amp technology

selectable high-pass filter (bypass, 80, 120 Hz at 12 dB/octave) on front and rear channels

subsonic filter: 32 Hz

preamp and speaker-level inputs

GTO™ (Great Turn On) signal-sensing turn-on with speaker-level input

fuse rating: 30A x 1

wiring and hardware not included with amplifier

8-gauge power and ground leads recommended

dimensions: 9-1/2"W x 1-3/4"H x 3-1/2"D

warranty: 5 years

What's in the box:

Amplifier

30A fuse (installed on amp)

Two 4-pin speaker input connectors (installed on amp)

Two 4-pin speaker output connectors (installed on amp)

Quick start guide
