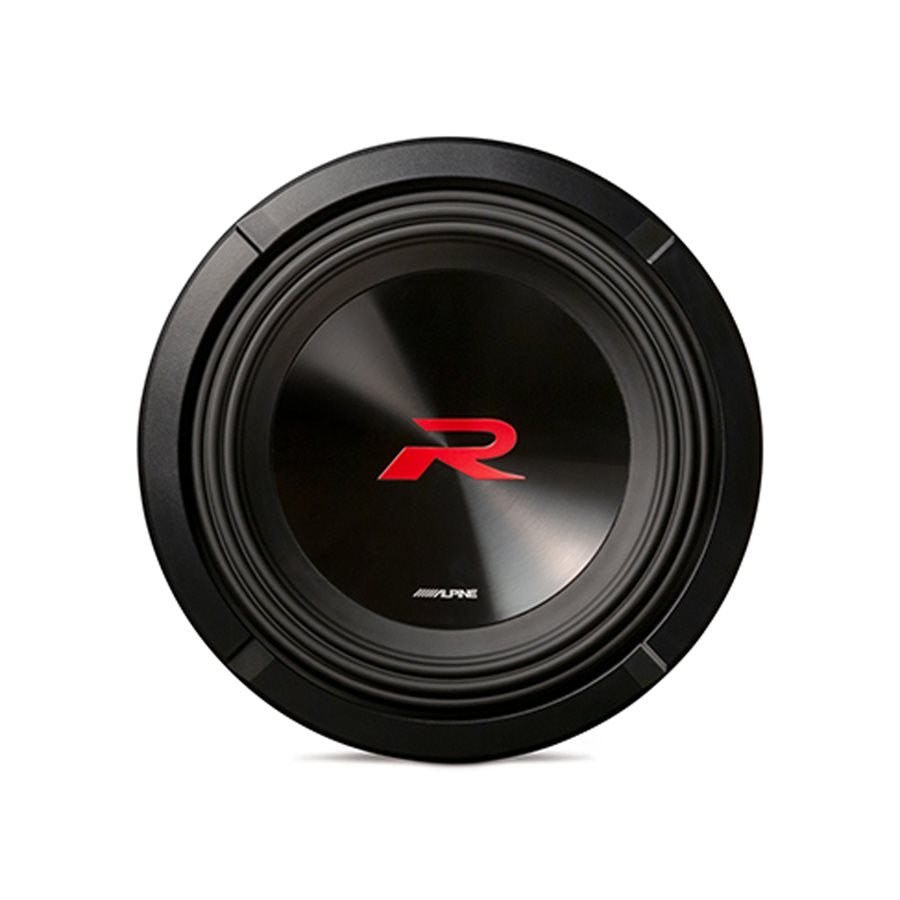

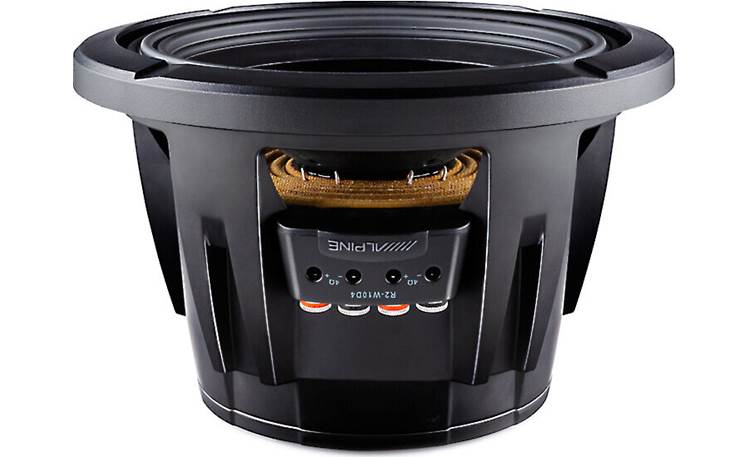

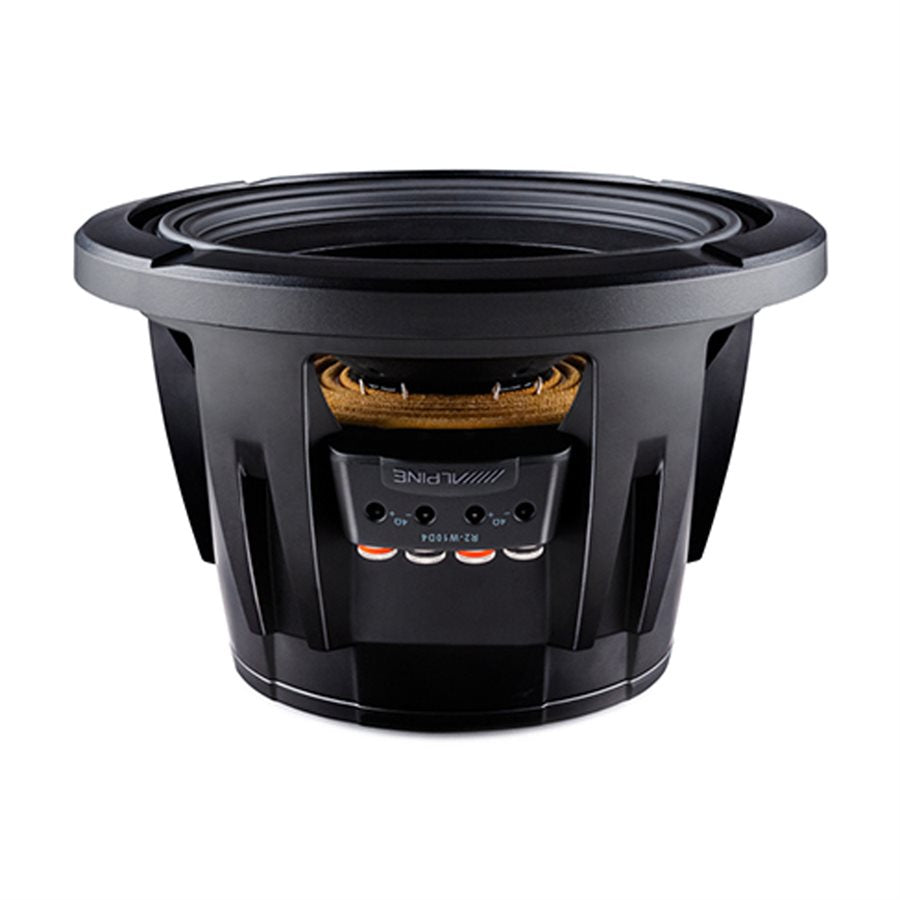

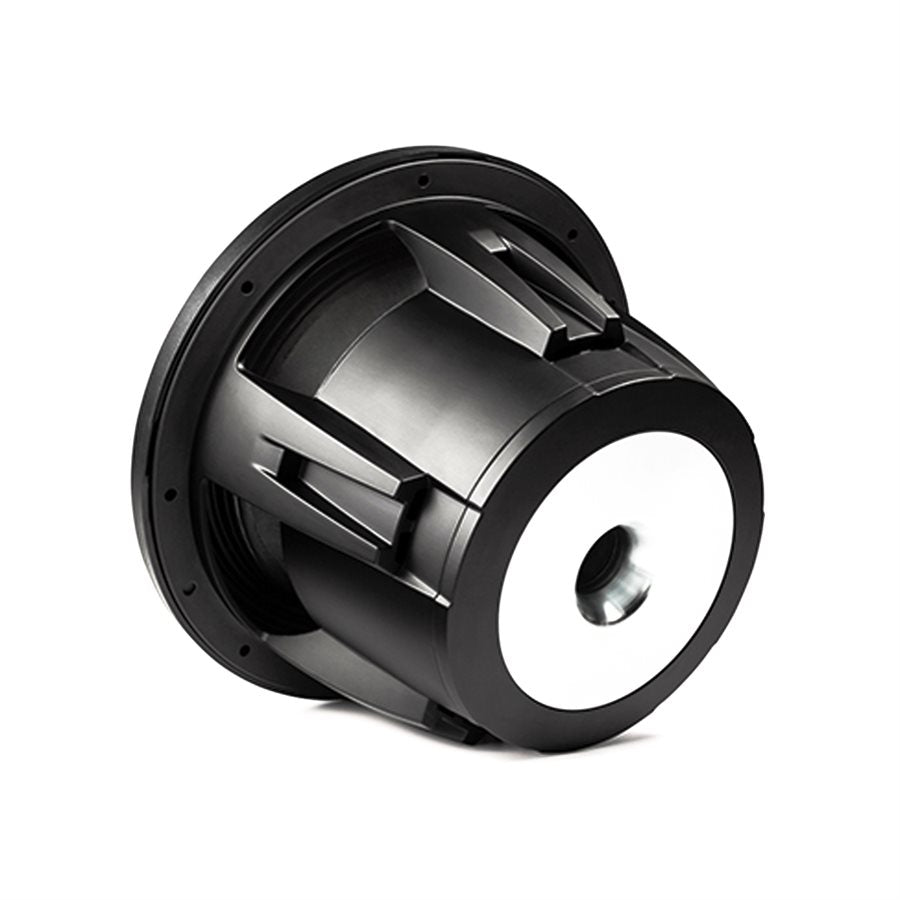

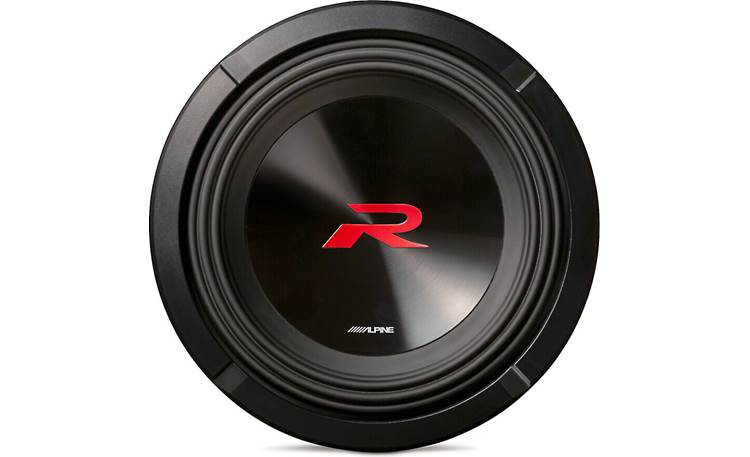

Alpine R2-W10D4 10" Subwoofer 4+4 ohms

Product highlights:10" subwoofer with dual 4-ohm voice coils
Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
frequency response: 26-200 Hz
power handling: 300-750 watts RMS (375 watts per coil)
peak power: 2250 watts
sensitivity: 82.8 dB
top-mount depth: 5.975"
mounting height: 0.8"
sealed box volume: 0.48-0.93 cu. ft.
ported box volume: 0.83-1.38 cu. ft.
grille not included
MFR # R2-W10D4


What's in the box:
Alpine R2-W10D4 owner's manual
One 10" Dual 4-ohm voice coil subwoofer
Plastic trim ring

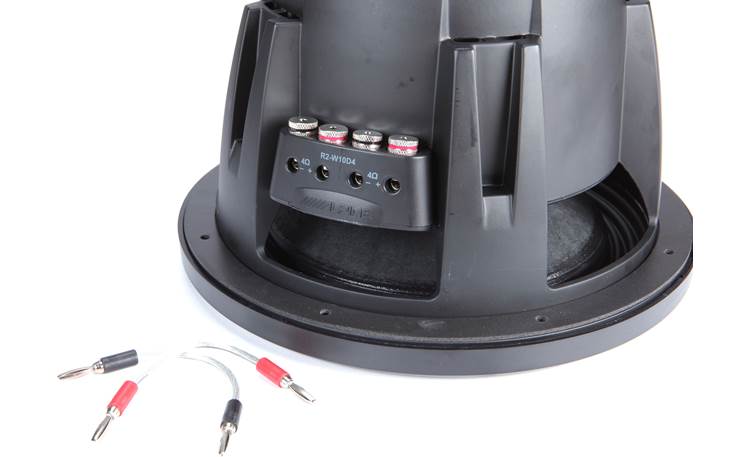

Two 4.5" jumper wires (each wire has a single banana connector on both ends)
Application guide (English/ French)
On-line product registration information
Warranty information (English/ French)
Important Notice (English /French)
