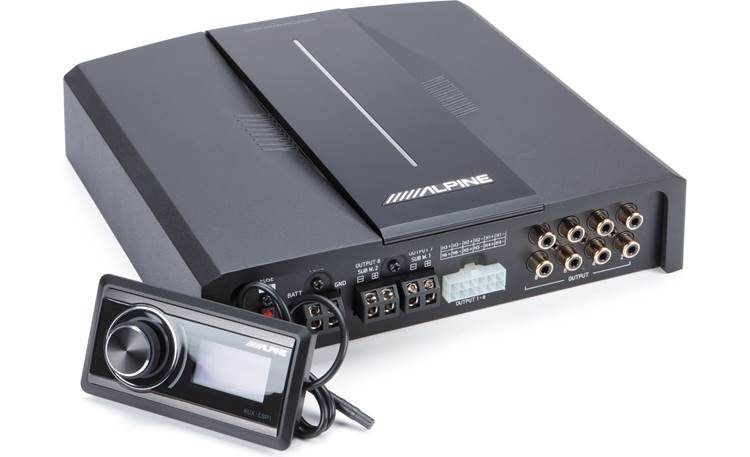

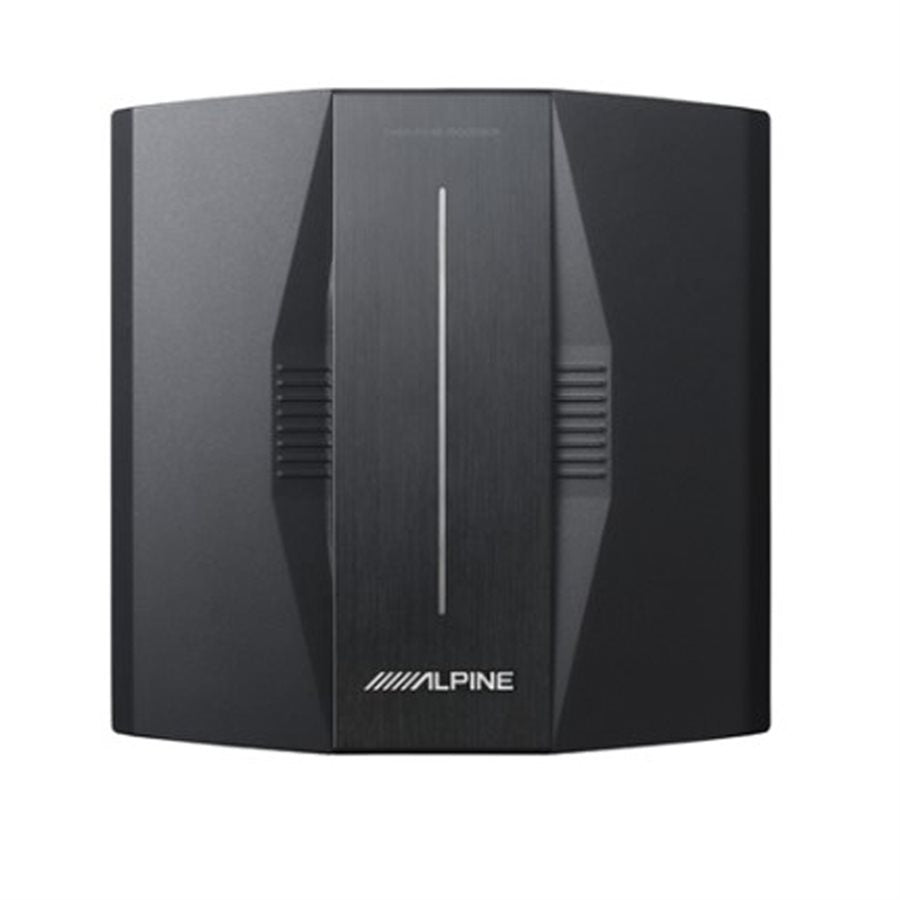

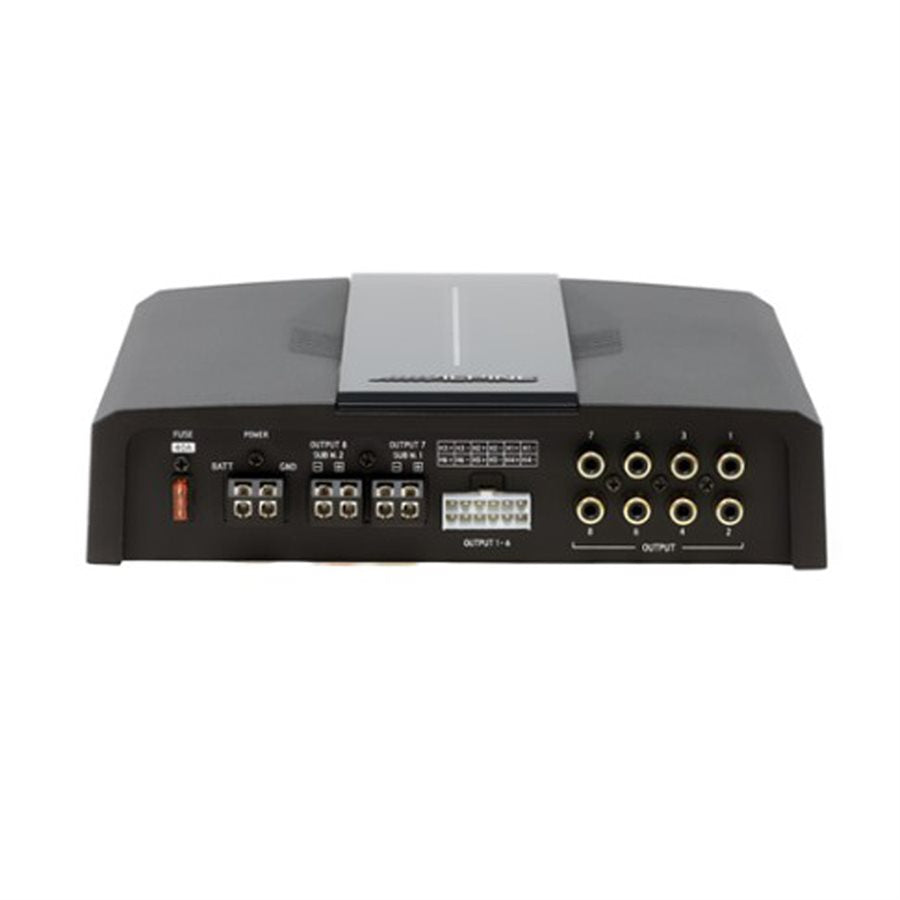

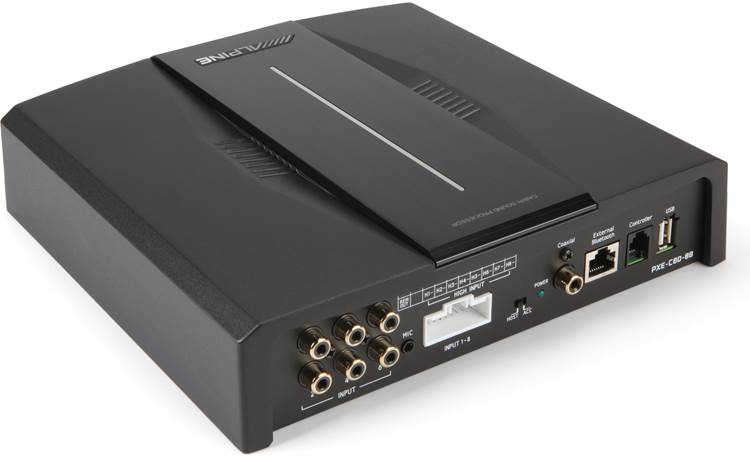

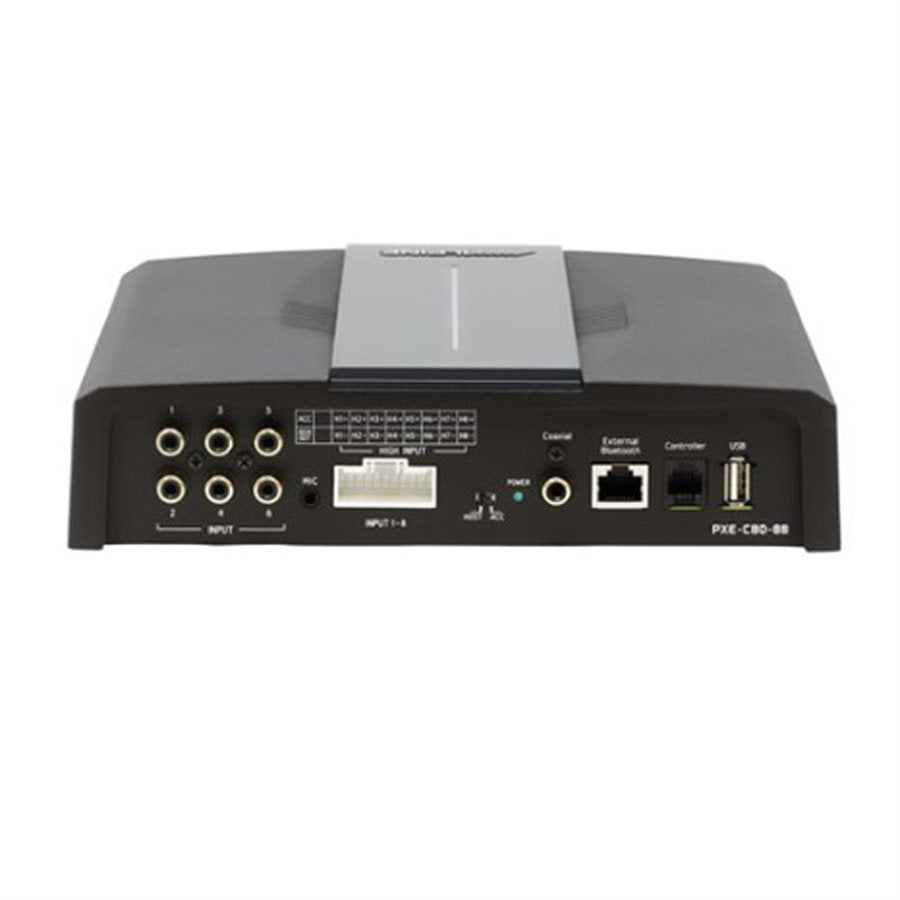

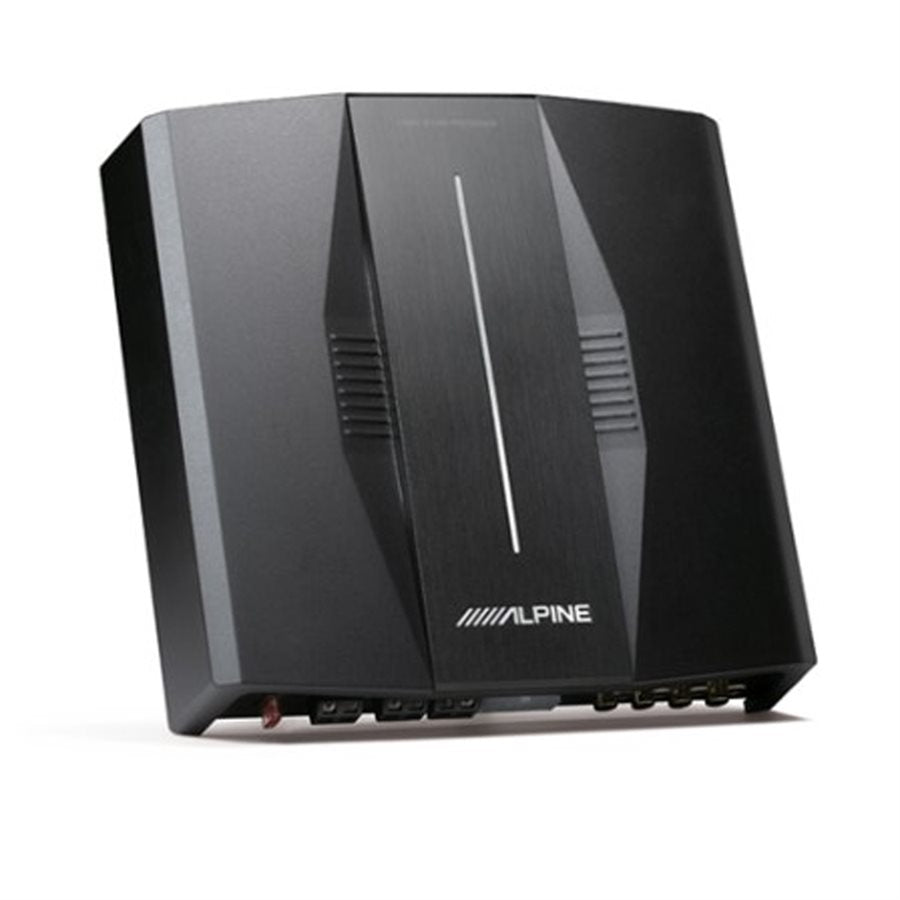

Alpine PXE-C80-88 8-Channel (Optim-8) Cabin Sound Processor w / Hi-Res Playability

Product highlights:8-channel car amplifier with digital signal processing50 watts RMS x 6 + 150 watts RMS x 2 at 4 ohms
50 watts RMS x 6 + 300 watts RMS x 2 at 2 ohms

High-Resolution Class D amp technologyfrequency response: 10-48,000 Hz
digital signal processing: 96 kHz, 24-bit

initial setup made via Alpine's DSP control app on your PC deviceautomatic tuning via iPhone uses built-in mic and Bluetooth connection to amp (dongle included)
automatic and manual tuning via PC uses an external measurement microphone like and USB connection to amp (cable included)

signal processing includes input/output routing, 31-band EQs, and multi-channel time alignment
Anti-EQ eliminates factory EQ curves
More info:
inputs: coax and USB digital (up to 96 kHz, 32-bit); 8-channel high-level speaker (up to 30V); 6-channel RCAamp's remote turn-on circuit ("Switched Power Lead") uses the included high-level input harness

preamp outputs: 8-channel processed (4V)
wiring and hardware not included with amplifier10-gauge power and ground wires recommended

fuse rating: 40A
dimensions: 8.82"W x 2.14"H x 10.43"D
MFR # PXE-C80-88

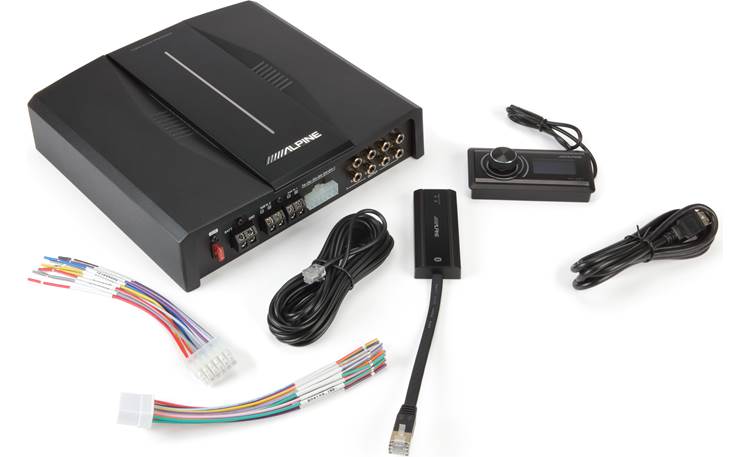

What's in the box:
Alpine PXE-C80-88 owner's manual
8-Channel processor/amplifier (installed 40A mini-ATO fuse)
CSP Controller (attached 16" cable with 4-pin connector)
16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)
KCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)
5' USB-A cable (2.0)
6" 20-Pin input harness
6" 12-Pin output harness
2 Mounting plates
Four 3/4" pan-head screws
Ten 6mm counter-sunk machine screws
Quickstart guide (En/ Sp/ Fr/ Others)
Warranty information
Product registration information
Quickstart addendum
