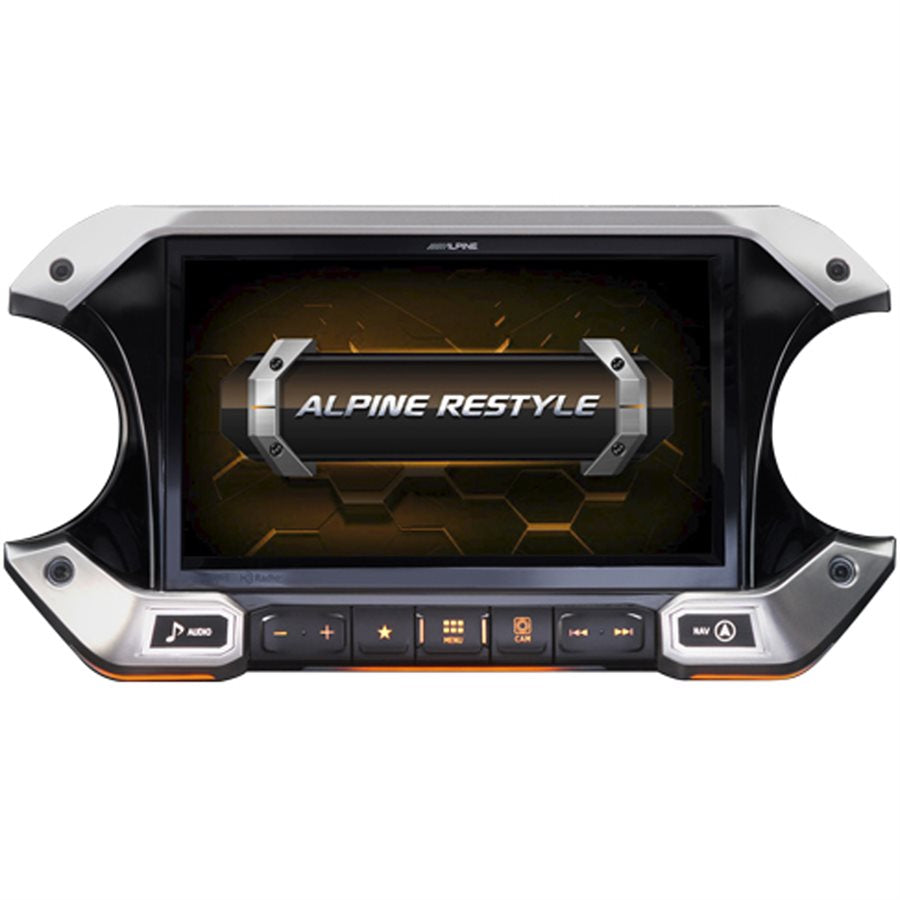

Alpine I509-WRA-JL 9" Weather Resistance Restyle System for Jeep Wrangler JL & Gladiator JT

Product highlights:General Features:
digital media receiver with AM/FM tuner (does not play discs)
custom-fit receiver designed for select 2018-up Jeep Wrangler JL and 2020-up Jeep Gladiator JT models
includes Alpine Restyle package with all installation parts
9" capacitive touchscreen with high-resolution (1280x720 pixels) display
splash-proof and dust-proof touchscreen and bezel (IP53-rated)
retains factory rear-view camera
Bluetooth hands-free calling and audio streaming (external microphone included)
includes iDatalink Maestro ALP-MRR module (requires Windows PC for programming)retains factory features, including steering wheel controls
displays engine performance data on touchscreen

HD Radio tuner built-in
Smartphone Features (see Details for info on compatibility with specific smartphones and apps):
Apple CarPlay compatible (wired and wireless)
Android Auto compatible (wired and wireless)
built-in iPod, iPhone, and iPad control
playback and control of music files on compatible Android devices
full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)
Audio/video Features:
plays MP3, WMA, AAC, WAV, APE, and FLAC music files (see Details tab for full capabilities)
plays AVI, MP4, MPG, MOV, and WMV video files
13-band parametric equalizer (Basic or Advanced)
6-channel time correction
10 EQ preset curves
high- and low-pass crossovers
Bass Engine SQ
MediaXpander HD
Expandability:
works with SiriusXM SXV300 tunersupports Tune Mix, Traffic & Weather Now, and Sports Flash features
inputs: 2 rear USB ports; rear HDMI input; rear auxiliary input; 2 proprietary camera inputs (one composite video adapter is included for non-Alpine cameras)
outputs: rear HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)
Other Information:
built-in amplifier (16 watts RMS CTA-2006/50 peak x 4 channels)
wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
MFR # I509-WRA-JL


What's in the box:
Alpine Restyle i509-WRA-JL owner's manual
Alpine iLX-F509:
9" Touchscreen monitor
Source unit
Wiring harness (15A fuse)
Preout harness
iDatalink/Driver Recorder/Front Camera harness
Camera input adapter harness
Mic/SWC harness
Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
Surface-mount bracket
Two-sided tape
GPS antenna (attached 8' cable with proprietary connector)
Self-adhesive mounting pad
3 Self-adhesive cable clamps
Power-plate
2 Rear covers
HDMI connector clamp
4 Pan-head ISO-screws (M5x8mm)
4 Counter-sunk ISO-screws (M5x8mm)
3 Display screws (M5x8mm)
2 Hinge screws (M3x4mm)
2 Rear cover screws (M2.6x6mm)
4 Rectangle self-adhesive sheets
4 Square self-adhesive sheets
2 Round self-adhesive sheets
2 Semi-oval self-adhesive sheets
Quick Reference Guide
Online Registration Information
Online Detailed Manual Card
Maestro ALP-HRN-WJL3:
iDatalink Maestro RR radio replacement interface module (ALP-MRR)
Main harness
Chime speaker
USB/HDMI/Aux interface
USB power adapter
USB flashing cable
Alpine SGS-BSV1-JWL:
Camera module
Camera power harness
41" Composite video cable (not used)
RCA-coupler
Alpine G-KTX-WJL:
Dash kit
Display bracket
Power inverter bracket
Tuner bracket
2 Screws
2 Washers
Display power/key harness
Installation Manu...
