PRODUCT DESCRIPTION

Features

• Amplifier Type: Class-A/B
• Channel Design: 2/1 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red Status LED
• 1 pair RCA pre-inputs
• 1 pair RCA pre-outputs

Specs

• Total Max Power: 300W
• RMS Power Ratings
  • Per Channel into 4ohms (1%THD+N): 2 x 50W
  • Per Channel into 2ohms (1%THD+N): 2 x 70W
  • Bridged into 4ohms (1%THD+N): 1 x 130W
• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
• 1/2 Ch: LP: 50Hz 250Hz HP: 80Hz 1.2kHz
• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB
• Power Requirements: 14.4 V DC (11 V to 16 V)
• Input Sensitivity: 0.2 - 8.0 V
• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impedance: 4 or 2

Dimensions

• Size: 9.84 x 2 x 9.44

Whats in the box

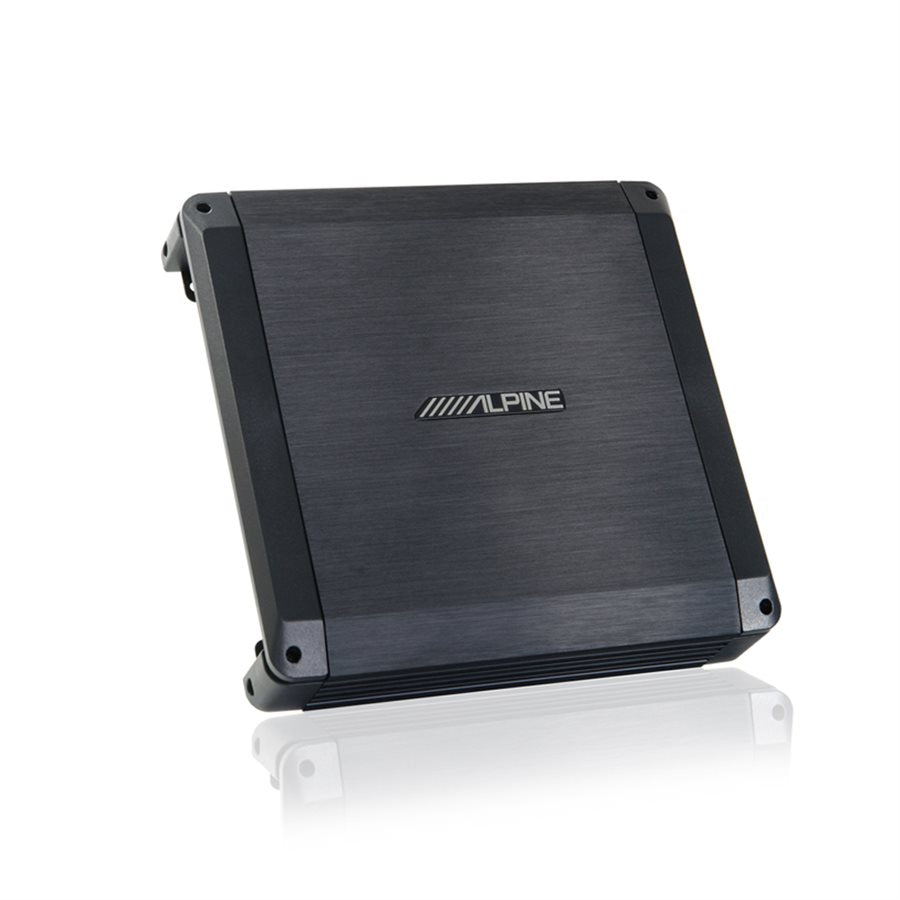

• Alpine 2-Channel Amplifier, 600W
