PRODUCT DESCRIPTION

Features

• Class-A/B 2-ohm Stable 4-Channel Amplifier
• Pulse Width Modulated MOSFET power supply
• Soft start turn-on
• 4/3/2 or channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink

Specs

• Class: AB
• Channels: 4
• RMS Power Rating:
  • 4 ohms: 50 watts x 4 chan.
  • 2 ohms: 70 watts x 4 chan.
  • 1 ohm: ------------N/A------------
  • Bridged, 4 ohms: 130 watts x 2 ch
• Total power output: 600 watts
• Input sensitivity: .2V - 8V
• Frequency Response: 5 - 50000 Hz
• Total Harmonic Distortion (THD): <1%
• Signal to Noise Ratio: 95dB
• Variable high-pass filter: 50 - 500 Hz
• Variable low-pass filter: 50 - 500 Hz
• Variable Bass Boost: 0 to +12 dB bass boost
• Fuse Rating: 40A x 1
• NOTE: 4 gauge power and ground wiring is recommended for installation

Dimensions

• Size (W x L x H): 9.4 x 12.9 x 2

Whats in the box

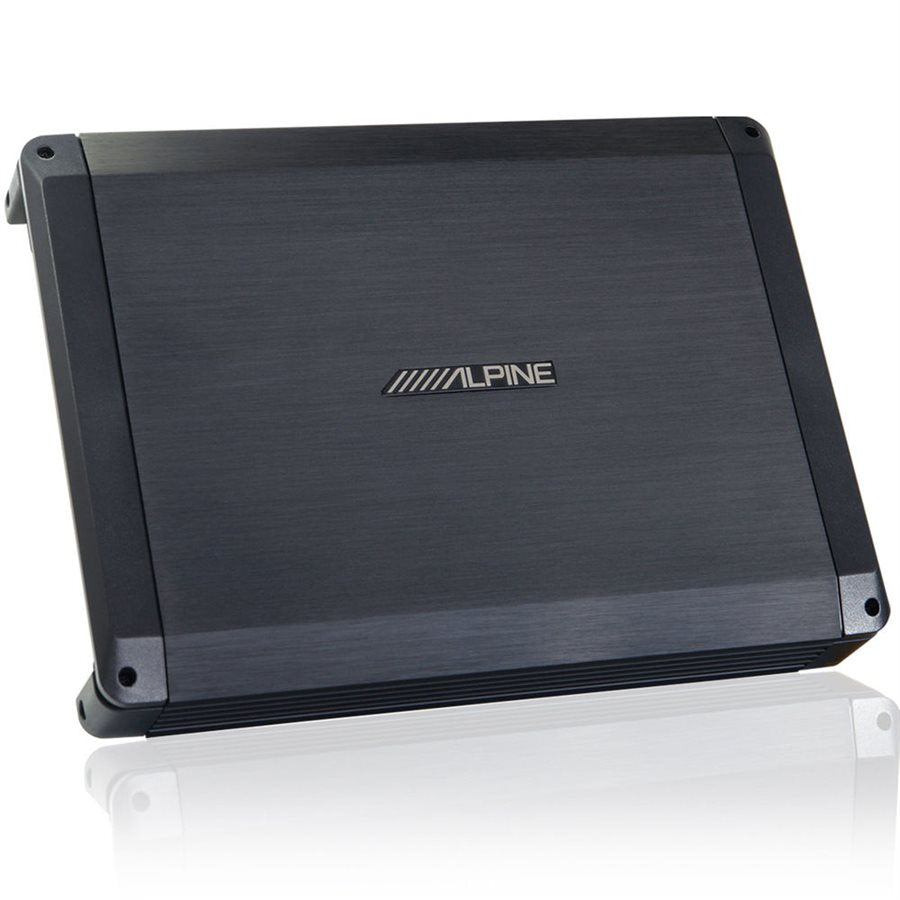

• Alpine 4-Channel Amplifier, 280W
