Description
xPRODUCT DESCRIPTION
TECHNICAL SPECIFICATIONS
Receivers
Manufacturer: JVC Mobile
Bluetooth Connectivity: Yes (Built-In)
DIN Size: Double-DIN
Screen Size: 6"
Head Unit Type: Mechless

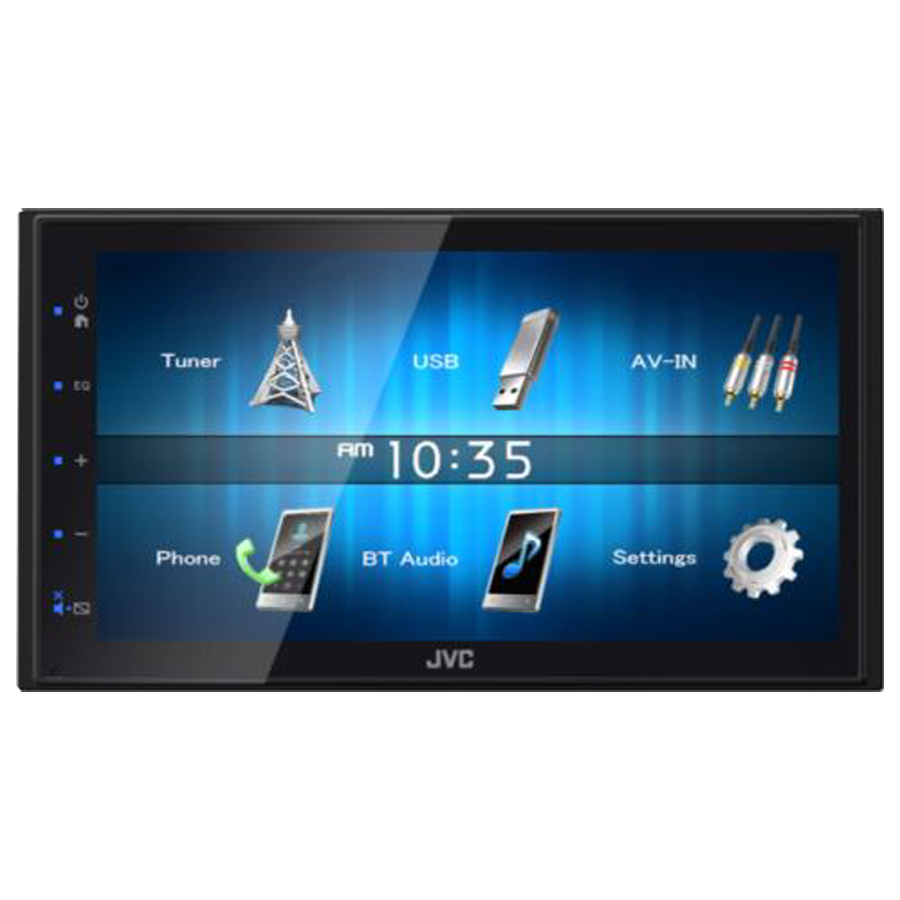

A 6.75" capacitive touchscreen display, smartphone integration, and a nice price makes JVC's KW-M150BT multimedia receiver a big step up from a factory radio. Count on hands-free calling, music streaming, and playback of music and video files stored on a USB flash drive as well. For Android users, the big fun of this receiver is controlling your compatible Android device via screen-mirroring when the parking brake is engaged. And with an incredibly shallow chassis (3" deep), the KW-M150BT beats installation woes by being a better fit in challenging dashboards.
General Features:
General Features:
- Digital multimedia player with AM/FM tuner (does not play CDs)
- Plays media loaded with MP3, WMA, FLAC, and AAC music files
- 6.75" capacitive touchscreen display
- Fits double-DIN (4" tall) dash openings
- Android screen-mirroring via USB
- Built-in Bluetooth for hands-free calling and music streaming
- Built-in iPhone control and rapid Android charging via USB port
- Plays USB memory devices
- 13-band graphic EQ with digital time alignment
- High- and low-pass filters
- Inputs: rear USB input; backup camera input; rear A/V input (RCA)
- Outputs: rear video output; 5-channel preamp outputs (2-volt front, rear, mono sub)
- Wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- Built-in amplifier (16 watts RMS/45 peak x 4 channels)
- Compatible with most factory steering wheel audio controls (adapter required)
TECHNICAL SPECIFICATIONS
Receivers
Manufacturer: JVC Mobile
Bluetooth Connectivity: Yes (Built-In)
DIN Size: Double-DIN
Screen Size: 6"
Head Unit Type: Mechless
Monitor
- Screen Size
- 6.8" Wide VGA
- Touch Panel
- Capacitive with Printing
- Key Illumination Color
- Blue
- Multilingual Display
- Yes[2]
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- AVI/MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Version 4.2, Wired-Mic included)
- Hands Free Call
- Yes (HFP1.6 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
Android Control
- Mirroring for Android
- Yes (via USB)
- Android Music Playback
- Yes (via Bluetooth(R))
iPod/iPhone Control
- iPod/iPhone Music Playback
- Yes (via USB or Bluetooth(R))
USB
- USB Port
- x1 (High Speed)
- Position
- Rear
- USB Power Supply
- Yes (1.0A)
Radio Tuner
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 30 (6ch x 5band)
- Auto Memory Entry
- Yes
- FM
- Frequency Range
- 87.9-107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 45Wx4
- Full Bandwidth Power (Front & Rear)
- 16W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (7Preset + 3user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Time Alignment
- Yes
Inputs and Outputs
- AV Input
- RCA x 1
- Video Out
- RCA
- Rear view camera Input
- Yes
- Line Output Terminals
- 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
- Pre-output Level/Impedance
- 2V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes
General
- Face Type
- Fixed
- Short Chassis
- Yes
- Wireless R..
