5 Channel Stinger Marine PowerSports Amplifier (150w @ 2 ohm + 500w x 1 @ 2 Ohm)

5 Channel Stinger Marine PowerSports Amplifier (150w max @ 2 ohm + 500w x 1 @ 2 Ohm)

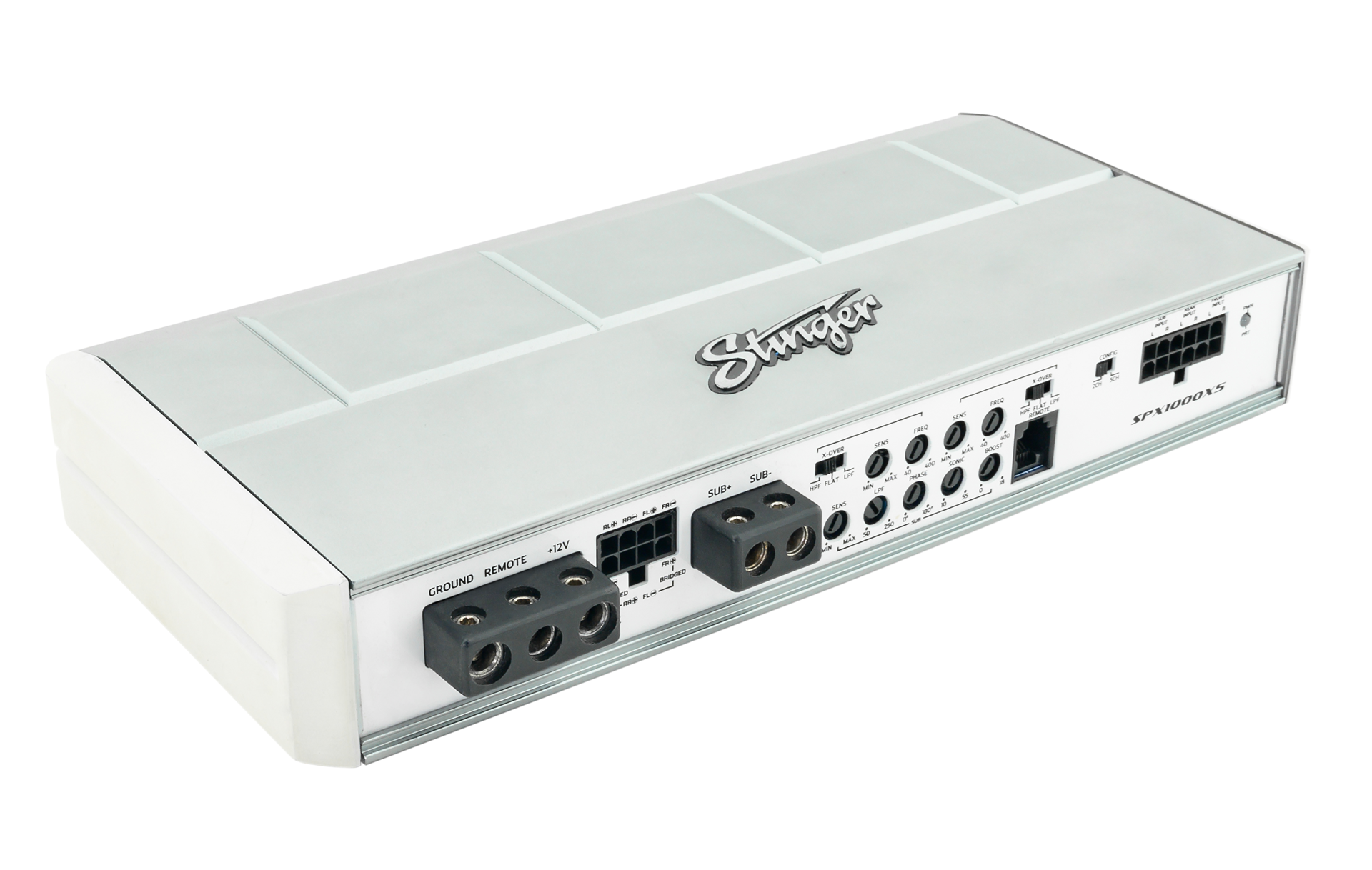

The perfect single amp solution for Marine and Powersports, the SPX1000X5; a compact, weather-resistant, full-range Class D amplifier that delivers massive power with minimal size and extreme durability, built to withstand harsh powersports applications and beyond. The SPX1000X5 marine-grade 5ch, 1000watt amplifier rounds out Stinger's line of micro-sized marine amps which also includes the SPX700x4 and theSPX350x2. The entire line features conformal coated PCB’s to reject salt and fog intrusion and to ensure season after season of listening enjoyment. Corrosion resistant aluminum chassis, nickel-plated termination with stainless hardware make housing to the connections bulletproof to the elements

• Perfect for motorcycles, ATV, marine and mobile applications
• Small footprint low profile design
• IPX-4/5 weather resistant design with conformal coated PCB
• Full range Class D
• Unregulated power supply
• High Level or Low Level inputs
• Diecast endcaps with removable mounting feet
• Sub level control included
• Aluminum Chassis
• Corrosion resistant Nickel-plated connections and stainless hardware
• Switchable 2 or 5ch inputs with no jumpers needed
• Onboard HP/LP/Bypass Crossovers Channels 1-4
• Onboard 50-250Hz LP Crossover with 0-1800 Phase adjustment and up to 18dB of Bass Boost (Channel 5)
• RMS Power (14.4Vdc ≤1% THD):
• 95 x 4 @ 4 ohm Stereo - CH 1-4
• 275 x 1 @ 4 ohm - CH 5
• 150 x 4 @ 2 ohm Stereo - CH 1-4
• 500 x 1 @ 2 ohm - CH 5
• Frequency Response: ± 1dB from 20Hz to 20kHz
• Signal to Noise Ratio: >110dB
• High and Low Pass Crossovers: 12dB per Octave
• Low Pass Crossover Range: 40Hz to 400Hz
• High Pass Crossover Range: 40Hz to 400Hz
• Sub Crossover Range: 50Hz to 250Hz
• Input Range: 200 millivolts to 12 volts
• Typical Efficiency: 80%
• Damping Factor: Greater than 200
• Recommended Fuse Size: 80 amp
• Power/Ground Wire Size: 8 Gauge
• Dimensions:
  283.5mm L x 120mm W x 41mm H
  11.16” L x 4.73” W x 1.6” H
