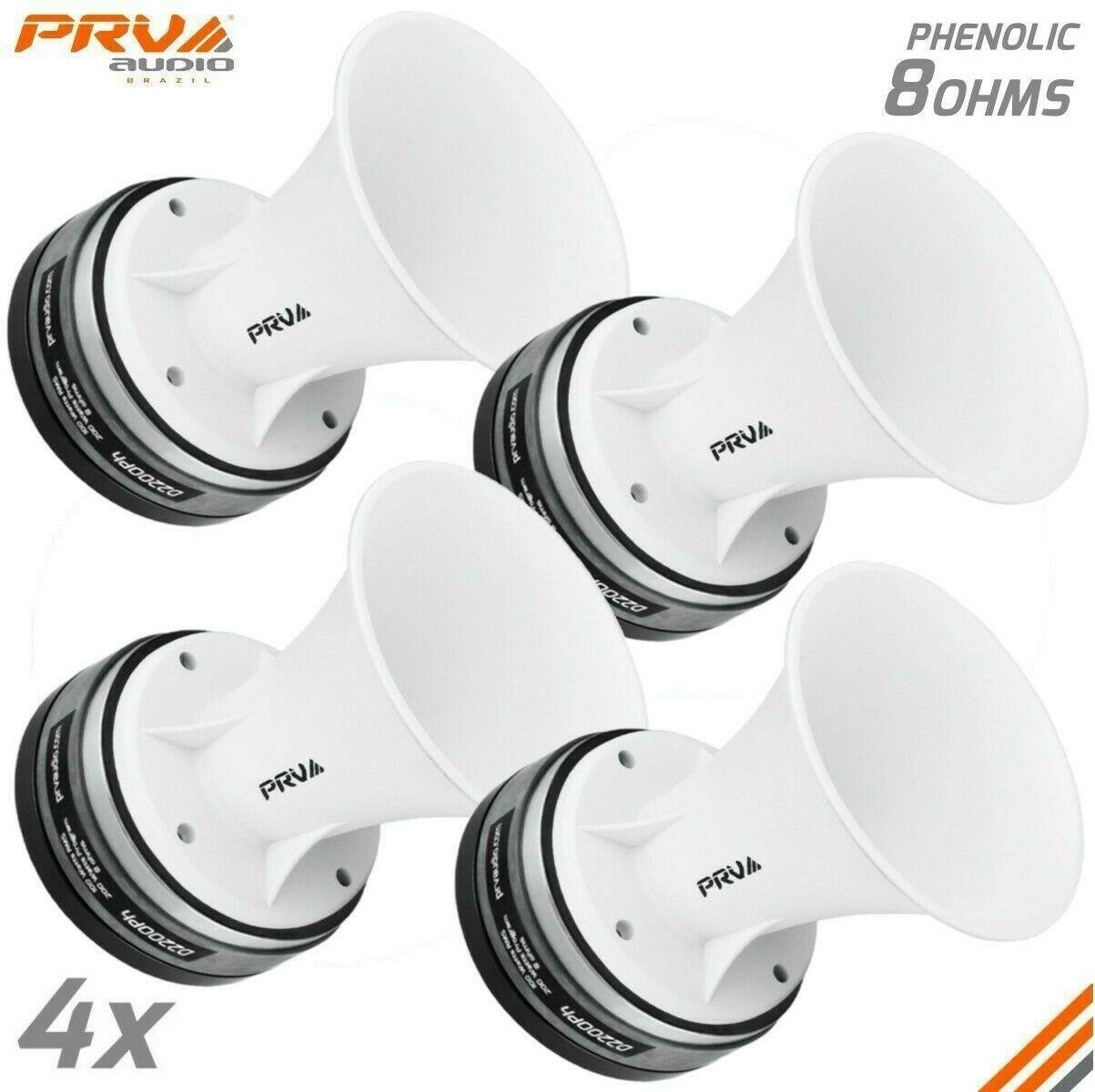

4x PRV D2200Ph Pro Audio Phenolic Compression Driver 800W + WGP14-50PR Horn
4x PRV D2200Ph Pro Audio Phenolic Compression Driver 800W + WGP14-50PR Horn
Couldn't load pickup availability
INCLUDES:
4x D2200Ph 2" EXIT PRO AUDIO PHENOLIC COMPRESSION DRIVER
4x WGP14-50PR WHITE 2" EXIT WAVEGUIDE
Features
The D2200Ph is a compact solution for mid-high vocal reproduction that offers high sensitivity and a pleasant sound from the phenolic diaphragm. Its high output and smooth mid range frequency response allow you to use this horn driver in almost any high output audio application for vocal reinforcement: PRO, Home, Car, or PROAudioOnWheels® Audio Systems.
High output mobile audio enthusiasts choose the PRV Audio D2200Ph for extreme SPL car audio competitions in South America, while DJs use it in high SPL speaker cabinets for entertaining crowds that number in the thousands.
Highlights
- The low mass CCAW voice coil and phenolic diaphragm for natural response
- Designed for midrange and vocals from 500 to 9,000 Hz
- High Output – 109 dB sensitivity
- Compact driver design for easy front mount installation
The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from any WGP14-50 Horn. The Driver diameter measures only 5.24″ having a lot of clearance to fit inside of the 5.65″ baffle cut needed for our 2″ exit horns from the WGP14-50 Series.
Combining our company’s extensive experience, and its commitment to customer satisfaction we have created a compact yet very powerful driver that solves the critical component spacing and weight issue.
TRIO by PRV uses the latest Brazilian phenolic technology designed for vocal reproduction.
The phenolic diaphragm is attached to a 2″ diameter copper-clad aluminum wire with Kapton® former for a high 100 watts RMS power handling rating (when used with the recommended 500 Hz, 12 dB/octave high pass crossover). An amazing 109 dB of output with only 1 watt of input power (2.83V), when measured at one meter, allows the D2200Ph to be used in even the loudest of environments! Mounting hardware is included.
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 100 Watts |
| Program Power | 200 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 500 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 500 – 9,000 Hz |
| Voice Coil Diameter | 2” (51 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic |
| Flux Density | 1.66 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 5.24” (133 mm) |
| Overall Depth | 2.58” (65.5 mm) |
| Mounting Bolt Circle | M6 x 4 – 4” (101.6 mm) |
| Net Weight | 6.39 lbs (2.9 kg) |
| Shipping Weight | 6.61 lbs (3.0 kg) |
| Carton Dimensions W x L x H | 5.71” x 5.71” x 3.93” (145 x 145 x 100 mm) |
