4 x PRV Audio 6MB200-4 V2 4-Ohm 6.5" MID-BASS 200W Pro Audio LOUDSPEAKER New Pair

PRV Audio 6MB200-4 V2 6" MID-BASS 200W Car Audio LOUDSPEAKER 4-Ohm 6MB200V2

Features

The PRV Pro Audio Loudspeaker, 6MB200-4 v2 mid bass woofer, offers outstanding durability and a smooth punch of mid bass for small enclosures. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.

The 6MB200-4 v2 now has more extended mid range response, up to 6.5 kHz compared to its previous model, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its light weight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio applications.

Highlights

Nominal Impedance: 4 Ohms

Rated Power Handling: 100 Watts

Program Power: 200 Watts

Sensitivity (1W/1m): 93.5 dB

Voice Coil Diameter: 1.5?

Specification

Nominal Diameter

6? (152 mm)

Nominal impedance

4 Ohms

Rated Power Handling

100 Watts

Program Power

200 Watts

Sensitivity 2.00V at 1m

93.5 dB

Recommended Hi Pass Crossover*

*For Full Power Handling

125 Hz**

**12db Per Octave Crossover

Frequency Response at -10dB

125 - 6,500 Hz

Voice Coil Diameter

1.5? (38 mm)

Voice Coil Wire

Copper

Voice Coil Winding Depth

12.5 mm

Former Material

Kapton

Magnetic Gap Depth

5.8 mm

Frame Material

Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume

Vas

3.97 l

Excursion (mathematical)***

Xmax

4.80 mm

Free Air Resonance

Fs

123.79 Hz

Mechanical Factor

Qms

20.84

Electrical Factor

Qes

1.02

Total Factor

Qts

0.97

Cone Area

Sd

154 cm²

Mechanical Mass

Mms

11.89 g

Bl Factor

Bl

5.79 Tm

Dc Resistance

Re

3.7 Ohms

Inductance

Le

0.18 mH at 1 kHz

Mechanical Mass Without Air

Mmd

10.92 g

Mechanical Compliance

Cms

0.139 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

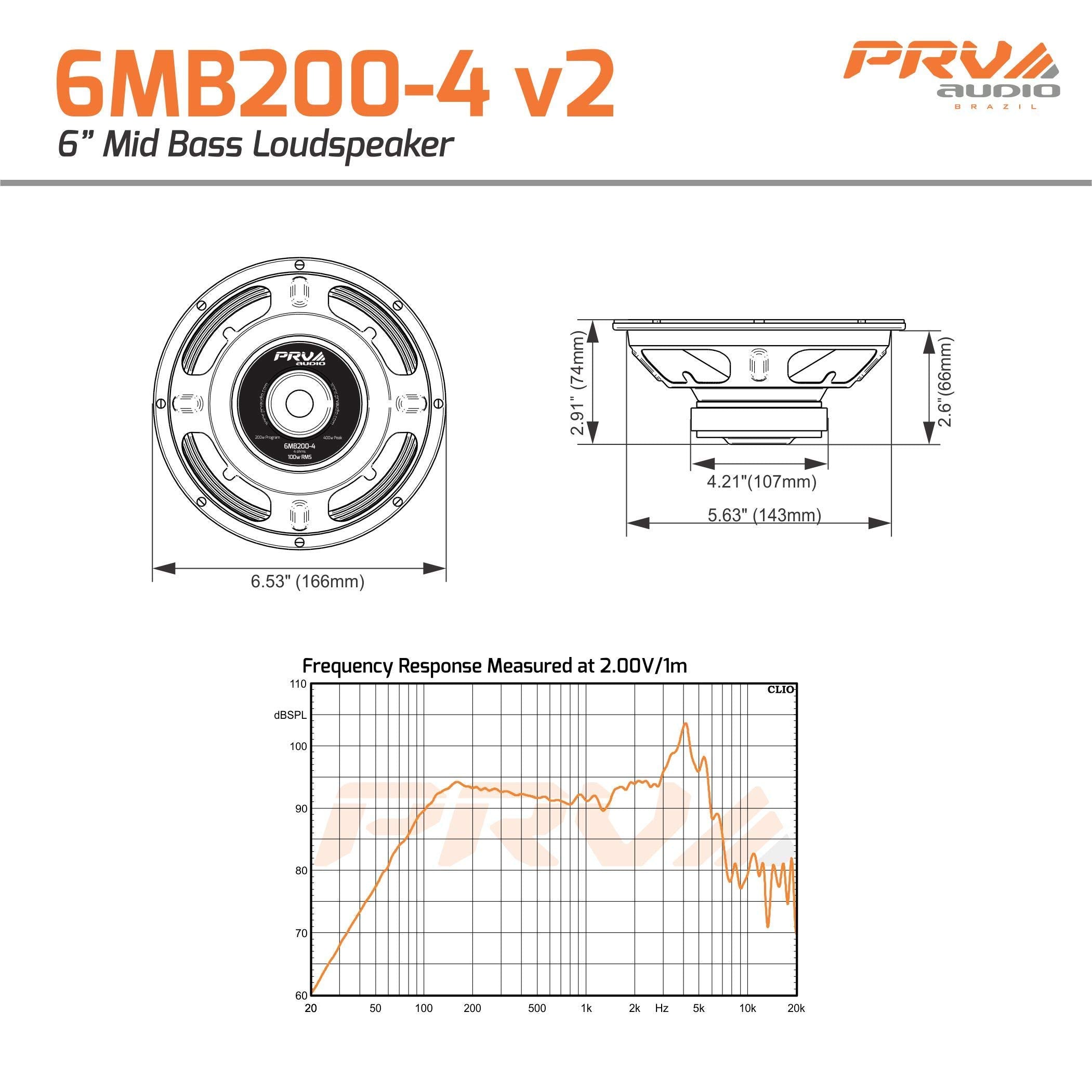

Overall Diameter

6.53? (166 mm)

Front Mount Baffle Cutout

5.63? (143 mm)

Mounting Depth

2.6? (66 mm)

Overall Depth

2.91? (74 mm)

Net Weight

3.30 Lbs (1.50 kg)

Shipping Weight

3.62 Lbs (1.64 kg)

Carton Dimensions W x L x H

7.17? x 7.17?x 4.13?

(182 x 182 x 105 mm)
