INCLUDES:

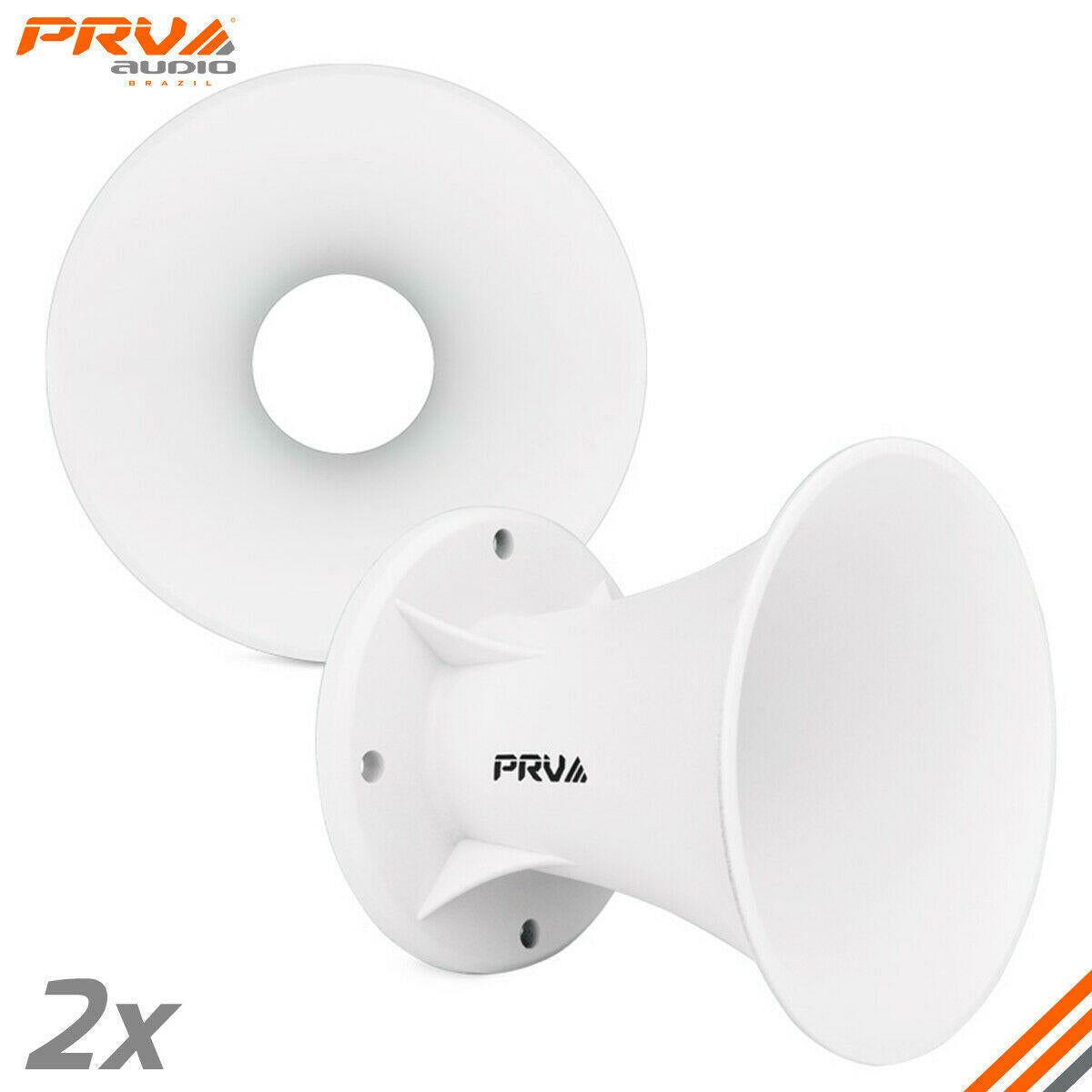

2x WGP14-50PR White 2" EXIT WAVEGUIDE



Features

2″ Exit – ABS Plastic Wave Guide – Bolt-on WGP PR



Highlights

• 2” Throat Diameter
• Light weight
• No Mounting Holes
• Bolt-on
• 45° x 45° Nominal Coverage



Technical Details

GENERAL SPECIFICATIONS

Throat Diameter	2” (50.8 mm)
Mounting Type	Bolt-on
Hole Dimensions	0.31″ 8 mm
Bolt Circle	4″ 101.6mm
Nominal Coverage
Horizontal	45°
Vertical	45°
Flare type	Exponential
Material	Plastic (ABS)
Finish / Coating	White Painting
Dimensions
Height	5.53″ (140.5 mm)
Width	5.53″ (140.5 mm)
Depth	5.0″ (127.0 mm)
Mount Depth	5.0″ (127.0 mm)
Baffle Cutout
Diameter Circle	5.53″ (140.5 mm)
Net weight	0.40 lb (0.18 kg)
