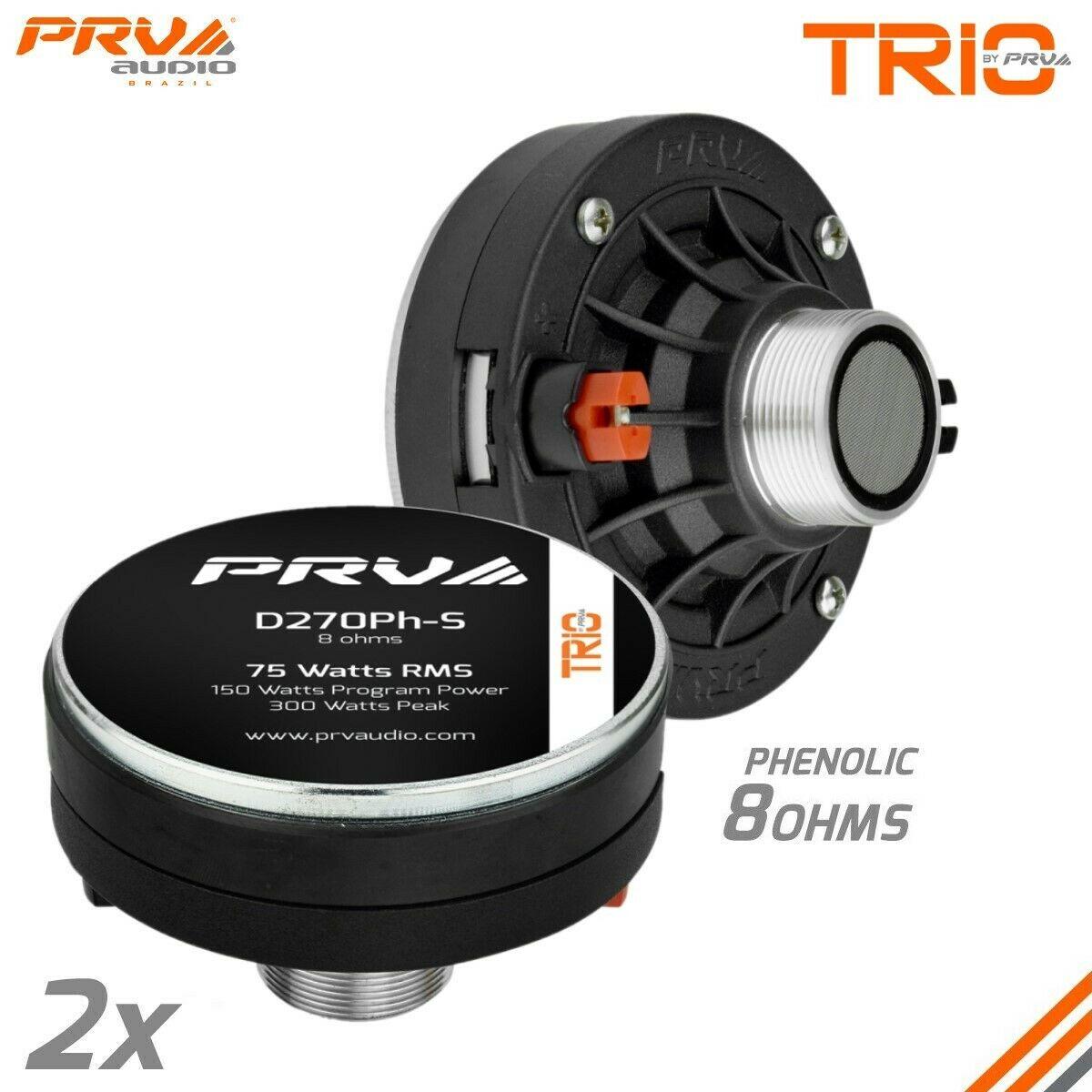

2x PRV Audio D270Ph-S 1" Exit Screw-on Phenolic Compression Driver 8Ohm 150W Max
2x PRV Audio D270Ph-S 1" Exit Screw-on Phenolic Compression Driver 8Ohm 150W Max
Regular price
$69.82 USD
Regular price
Sale price
$69.82 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
PRV Audio D270Ph-S is a new and improved compact driver that is all about high output and low distortion vocal reproduction all the way down to 500 Hz! This new driver is the perfect solution for use in high output PA and PRO audio on wheels systems.
Brazilian Phenolic Technology Designed For Vocal Reproduction. High-temperature copper wire is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures. The old replacement diaphragm RPD250Ph still fits the D270Ph-S driver.The nearly indestructible phenolic diaphragm, which can play down to 500 Hz, (RPD270Ph) is built to resist the elements, perfect for outdoor use.
Compact driver design for easy front mount installation. This more compact driver was created to supply the demand in the market. The small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from the horn.
Designed to reproduce the all-important vocal range with authority! This mid range compression driver and horn is a great choice for high power public address (PA) Systems small venues and gymnasiums. Car audio SPL enthusiasts use this combo for vocal reinforcement on 3 way systems.
Exit Throat Diameter 1″ (25.4 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 75 Watts
Program Power 150 Watts
Sensitivity 2.00V at 1m 107.5 dB
Recommended Hi Pass Crossover** **For Full Power Handling 500 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 400 – 8,000 Hz
Voice Coil Diameter 2″ (50 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Phenolic resin
Flux Density 1.10 T
Magnet Material Ferrite
FEATURES
- HIGH OUTPUT & LOW DISTORTION: the D270Ph-S PRV 1” Exit phenolic driver is a new and improved compact driver that is all about high output and low distortion vocal reproduction all the way down to 500 Hz!
- SOLID STRUCTURE: High temperature copper wire is used for the voice coil that is wound on a Kapton former to withstand high operating temperatures. New and improved design based on our D250Ph-S
- DESIGN FOR EFFICIENCY: 2.55 inches of front mount baffle cutout, the small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from the horn. Compact driver size is perfect for conditions where space is a concern
- POWER YOU CAN RELY ON: Comparison with old D250Ph-s with the new D270Ph-S improved performance. Designed to reproduce the all-important vocal range with authority! Ideal driver for mid range and vocal reinforcement
- UPGRADE TODAY, HEAR THE DIFFERENCE: This mid range compression driver and horn is a great choice for high power public address (PA) Systems small venues and gymnasiums. Car audio SPL enthusiasts use this combo for vocal reinforcement on 3 way systems
