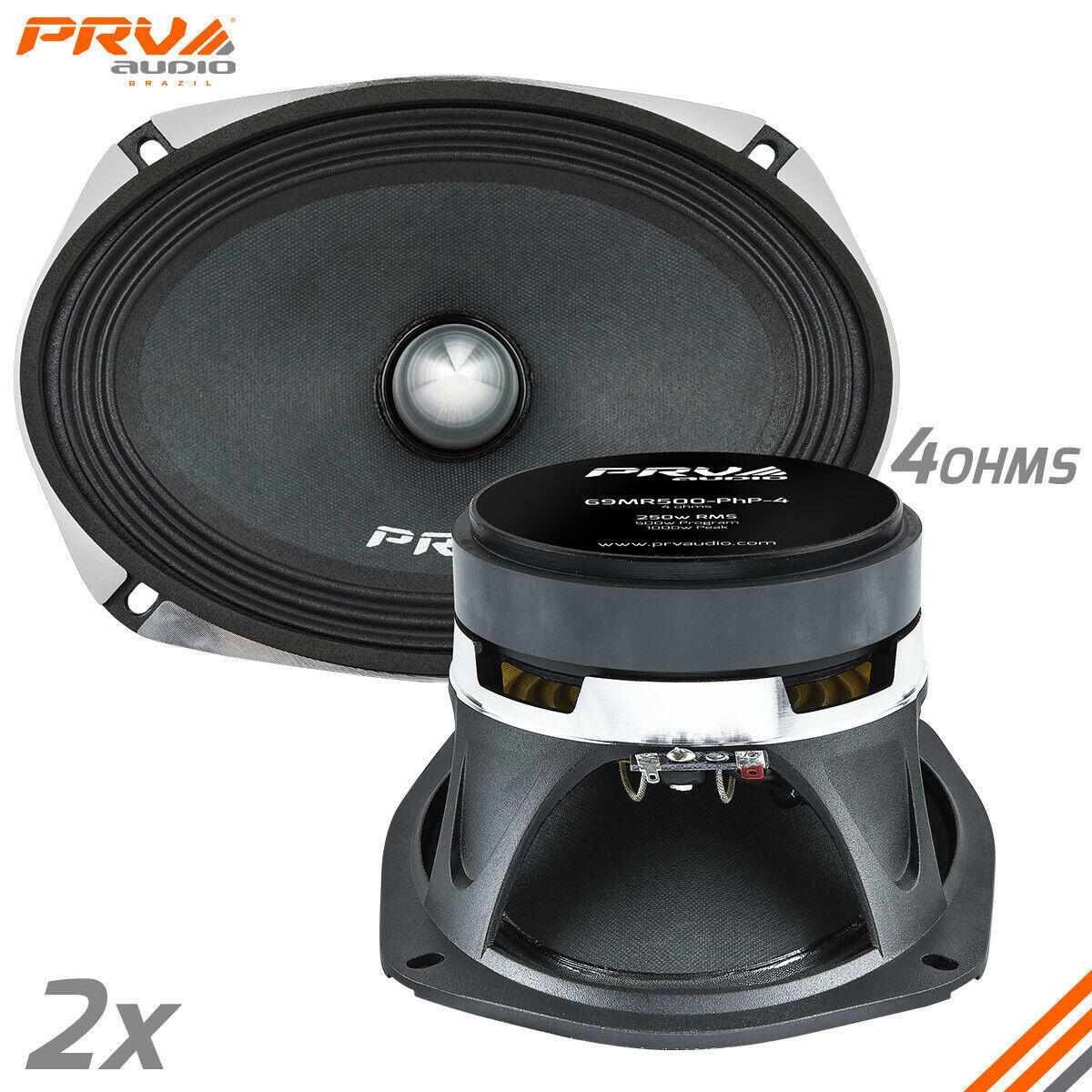

PRV Audio 69MR500PhP-4 6" x 9" Midrange Loudspeaker 4 Ohm
The unique 69MR500-PHP-4 6" x 9" midrange from PRV Audio offers smooth midrange response and high efficiency. This midrange is perfect for high output 3-way systems.
Key Features
Cast aluminum frame provides a rigid support
Aluminum phase plug improves off axis response
Includes 1,000 Hz high pass (6 dB/octave) for protection against low frequencies
Extensive venting under the spider for minimal power compression
PRV Audio's 69MR500-PHP-4 midrange loudspeaker offers outstanding durability and a smooth midrange response through 12 kHz. It is a great option for three way systems requiring additional midrange support.
A high-power ceramic magnet is attached to a sturdy, reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment, while the phase plug provides incredibly smooth high frequency response on and off axis. This driver includes a 1 kHz high-pass filter to ensure the best possible fidelity while protecting the driver in high power car audio installations. In addition, this also makes an excellent driver for use as a midrange in a high output pro sound systems, the oval shape has almost the same cone area as an 8" while allowing for closer center-to-center spacing.
Product Details
Brand PRV Audio
Model 69MR500PhP-4
UPC 799928734998
Unit of Measure Each
Weight 6.05
Product Specifications
Nominal Diameter 6 x 9"
Power Handling (RMS) 250 Watts
Power Handling (MAX) 500 Watts
Impedance 4Ω
Frequency Response 500 to 12,000Hz
Sensitivity 97dB 2.83V/1m
Voice Coil Diameter 1.5"
Thiele-Small Parameters
Resonant Frequency (Fs) 91.74Hz
DC Resistance (Re) 3.7Ω
Voice Coil Inductance (Le) 0.14mH
Mechanical Q (Qms) 14.2
Electromagnetic Q (Qes) 0.68
Total Q (Qts) 0.65
Compliance Equivalent Volume (Vas) 0.54ft³
Mechanical Compliance of Suspension (Cms) 0.204mm/N
BL Product (BL) 6.8T·m
Diaphragm Mass Inc. Airload (Mms) 14.76g
Maximum Linear Excursion (Xmax) 2.87mm
Surface Area of Cone (Sd) 231cm²
Materials of Construction
Cone Material Paper
Surround Material Cloth
Voice Coil Wire Material Copper
Voice Coil Former Kapton® / Polyimide
Basket / Frame Material Cast Aluminum
Magnet Material Ferrite
Mounting Information
Overall Outside Diameter 9.25" x 6.38"
Baffle Cutout Diameter 8.7" x 5.78"
Depth 3.86"
# Mounting Holes 4
