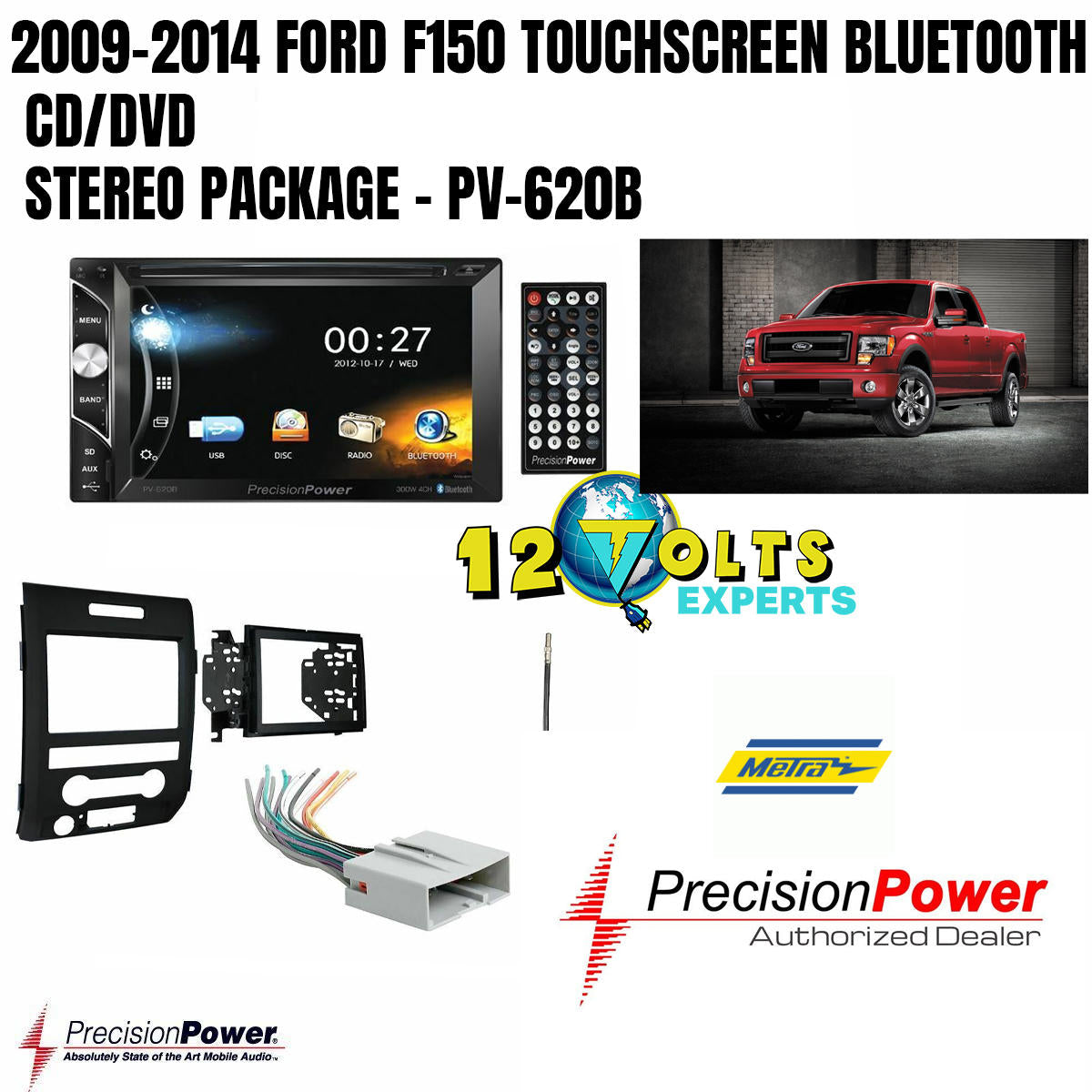

2009-2014 FORD F150 TOUCHSCREEN BLUETOOTH CD/DVD STEREO PACKAGE - PV-620B

Precision Power PV-620B

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo Receiver w/ 6.2" Touchscreen, Dual Camera Input

General Features:

Precision Power PV-620B In-Dash Receiver

Power Output:

Peak: 75 watts x 4 channels

RMS: 17 watts x 4 channels

DVD Playback

6.2" LCD Touchscreen

AM/FM tuner

Remote control included

Playback and Audio Features:

CD/CD-R/RW, DVD/DVD-R/RW, MP3/MP4 Playback

MP3/WMA/AAC/MP4/FLAC Playback via USB*** verify, delete what's not needed

Equalizer with selectable tone curves

3.5mm Front A/V Auxiliary Input

Front USB Input

SD Card reader for (audio and video) playback

2 Sets of preamp outputs (front, rear and subwoofer)

Bluetooth Features:

Built-in Bluetooth technology for hands-free talking and audio streaming

Bluetooth version 3.0

Bluetooth Profiles Supported:

HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone

A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo

Works with most Bluetooth enabled cell phones

Includes a built-in microphone for clear, convenient, distortion-free talking

Expandability Options:

Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately

Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.

Front Camera Input

Metra 70-5520 Receiver Wiring Harness

Connect a new car stereo in select 2003-up Ford, Lincoln, Mercury, and Hyundai vehicles

About the Metra 70-5520 Receiver Wiring Harness

Metra 70-5520 Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

First, attach the color-coded wires on your harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness saves installation time since you won't have to cut factory wires individually, and this also enables you to re-install the factory radio if needed. A detailed instruction sheet comes with the harness. Warranty: 60 days.

Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.

Connections:

12V constant power

12V switched power

chassis ground

dimmer

left front speaker +/-

right front speaker +/-

left rear speaker +/-

right rear speaker +/-

What's in the box:

Receiver wiring harness

MFR #70-5520

Metra 95-5820B Dash Kit

Fits select 2009-up Ford F-150 Regular Cab, Supercab, and Supercrew (FX2, FX4, STX, XL, and XLT models) — double-DIN radios (Matte Black)

About the Metra 95-5820B Dash Kit

Metra 95-5820

This mounting kit allows you to install a double-DIN (4" tall) aftermarket stereo in your vehicle's dash opening.

What's in the box:

Metra 95-5820B Dash Kit owner's manual

Trim panel

Radio housing

2 Brackets

6 Panel-clips

Installation Instructions

MFR #95-5820B

Metra 40-CR10 Antenna Adapter

Works with select 2001-up vehicles — Motorola plug to snap-lock female antenna jack

About the Metra 40-CR10 Antenna Adapter

Metra 40-CR10 adapter

The Metra 40-CR10 adapter lets you connect an aftermarket receiver to the factory antenna cable. It offers a male Motorola plug on one end and a snap-lock female antenna jack on the other. Length: 5-3/4".

What's in the box:

Metra 40-CR10 Antenna Adapter owner's manual

Antenna adapter cable (has a male Motorola plug on one end and a snap-lock female antenna jack on the other)

MFR #40-CR10
