2 x PRV Audio D3220Ti-Nd Titanium Neodymium Compression Driver 2"  + 2 x WGP14-50 White

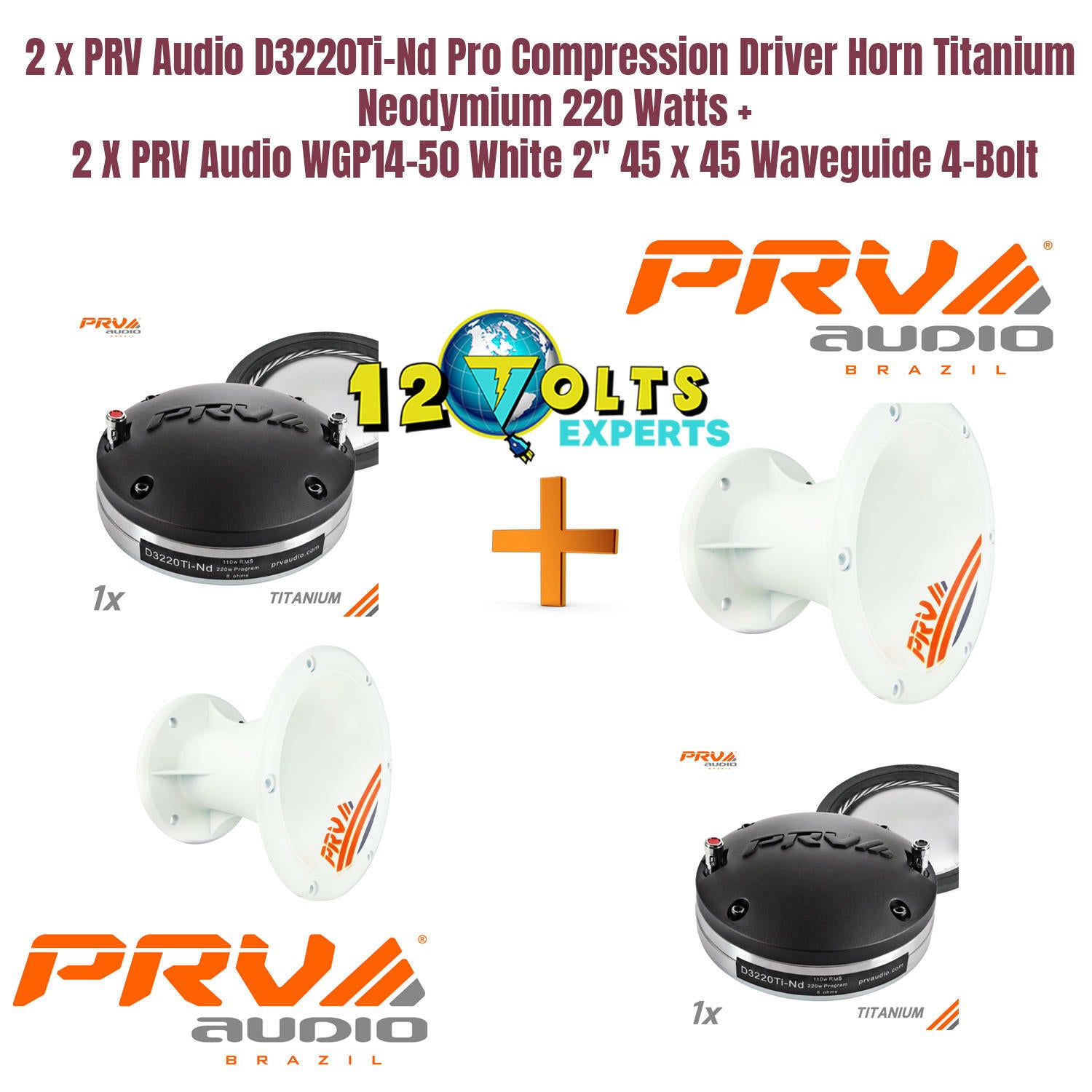

2 x PRV Audio D3220Ti-Nd Pro Compression Driver Horn Titanium Neodymium 220 Watts + 2 X PRV Audio WGP14-50 White 2" 45 x 45 Waveguide 4-Bolt

PRV Audio D3220Ti-Nd Pro Compression Driver Horn Titanium Neodymium 220 Watts

D3220Ti-Nd Compression Driver

Features

The powerful D3220Ti-Nd PRV Audio pro audio compression driver features a 2? exit supported by a 3? voice coil allows for accurate reproduction through 19kHz. The pure titanium diaphragm supported by a Kapton former results in a lightweight, yet durable design and offers a more natural sound for high SPL applications. The Neodymium magnet assembly reduces the weight to just 4.89lbs.

The D3220Ti-Nd is designed to ensure quality sound and long-lasting play in your large environment applications.

Highlights

Throat Diameter: 2"

Type: Bolt-On

Nominal Impedance: 8 Ohms

Rated AES Power Handling (RMS): 110 Watts

Program Power: 220 Watts

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter

2” (50 mm)

Nominal impedance

8 Ohms

Rated AES Power Handling (RMS)

110 Watts

Program Power

220Watts

Sensitivity 2.83V at 1m

110 dB

Recommended Hi Pass Crossover**

**For Full Power Handling

1600 Hz**

**12db Per Octave Crossover

Frequency Response at -10dB

1,600 – 19,000 Hz

Voice Coil Diameter

3”(76.2 mm)

Voice Coil Wire

Copper

Voice Coil Former Material

Kapton

Diaphragm Material

Titanium

Flux Density

1.80 T

Magnet Material

Neodymium

EXTRA INFO

Overall Diameter

4.88” (124 mm)

Overall Depth

2.21” (56 mm)

Mounting Bolt Circle

M6 x 4 4” (101.6 mm)

Net Weight

 5.00 lbs (2.27 kg)

Shipping Weight

5.27 lbs (2.39 kg)

Carton Dimensions W x L x H

5.71” x 5.71” x 3.35”

(145 x 145 x 85 mm)

PRV Audio WGP14-50 White 2" 45 x 45 Waveguide 4-Bolt

Give your high efficiency speakers a bit of flare with PRV Audio's WGP14-50 chrome and white finished exponential horn. With a 2" throat and 45° x 45° dispersion, this is perfect for applications where a tight coverage pattern is needed.

Key Features

2" throat with standard 4-bolt mounting pattern

UV resistant coating for use outdoors or in automotive application

Non-resonant reinforced ABS plastic construction

Minimum recommended frequency of 600 Hz
