Description
x
INCLUDES:

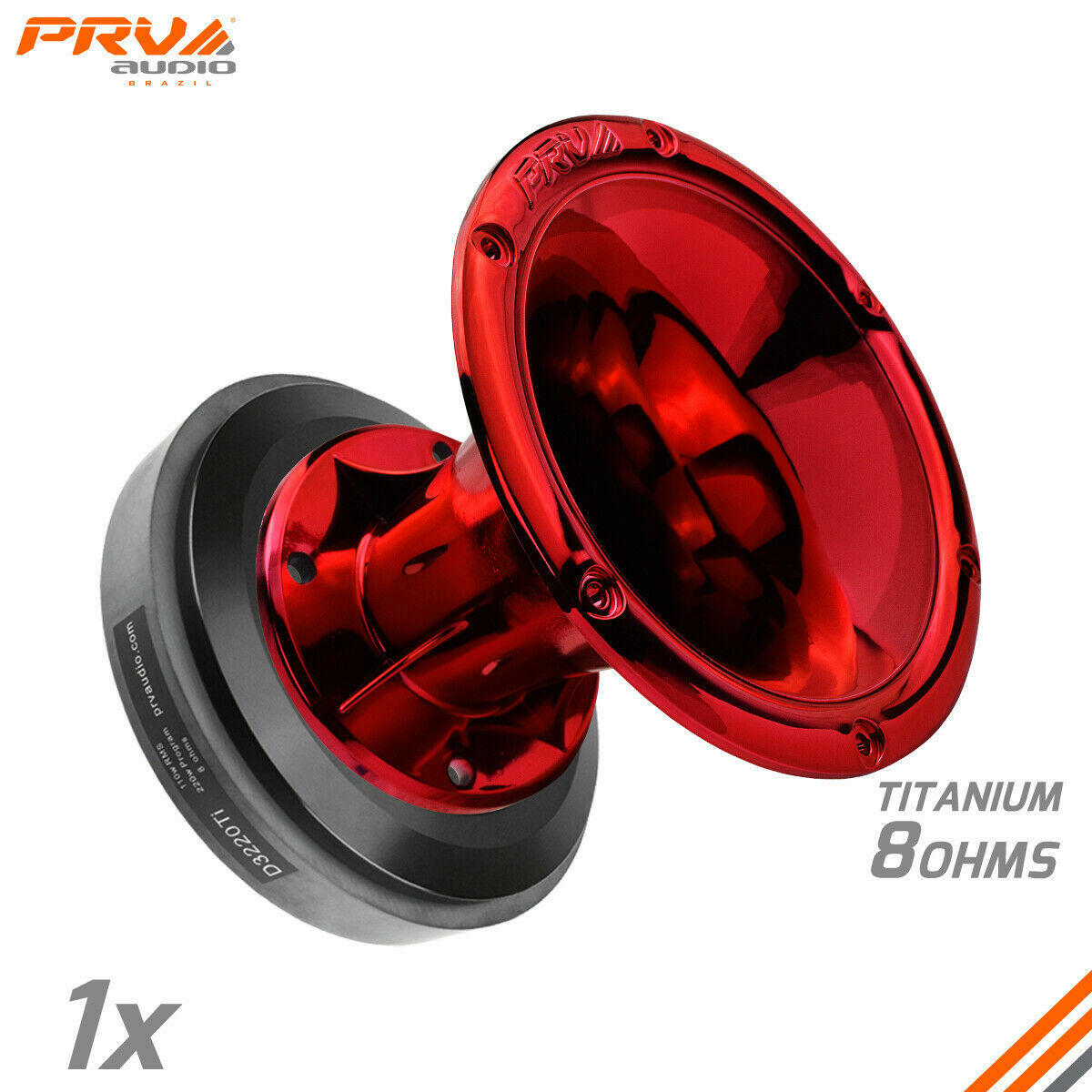

1x D3220Ti 2" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER
1x WGP14-50 Red CR 2" Exit Horn
Features
The powerful D3220Ti PRV Audio pro audio compression driver features a 2″ exit supported by a 3″ voice coil allows for accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a lightweight, yet durable design and offers a more natural sound for high SPL applications.
The D3220Ti is designed to ensure a quality sound and long-lasting play in your large environment applications.
Highlights
- Throat Diameter: 2"
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 110 Watts |
| Program Power | 220Watts |
| Sensitivity 2.83V at 1m | 108 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
1600 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,200 – 17,000 Hz |
| Voice Coil Diameter | 3”(76.2 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.80 T |
| Magnet Material | Ferrite |
FEATURES
- Kapton former and titanium diaphragm for neutral sound
- Designed for high frequency use 1, 200 to 17, 000 Hz
- High 108 dB sensitivity
- Four M6 bolt holes for secure Horn coupling with included mounting bolts
- Spring-loaded speaker terminals
