PRV Audio

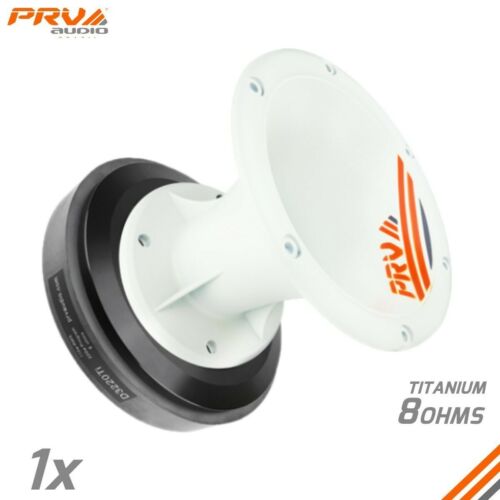

1x PRV Audio D3220Ti Titanium Compression Driver 2" + WGP14-50 White Horn 8 Ohms
1x PRV Audio D3220Ti Titanium Compression Driver 2" + WGP14-50 White Horn 8 Ohms
Regular price
$124.82 USD
Regular price
Sale price
$124.82 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
INCLUDES:

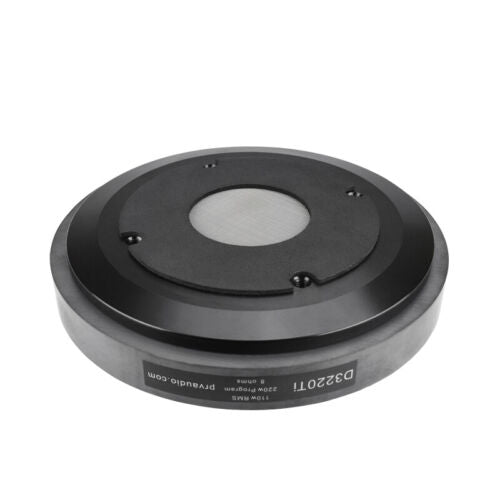

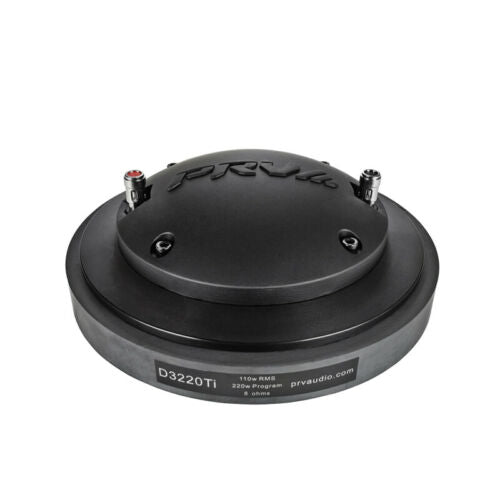

1x D3220Ti2" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER

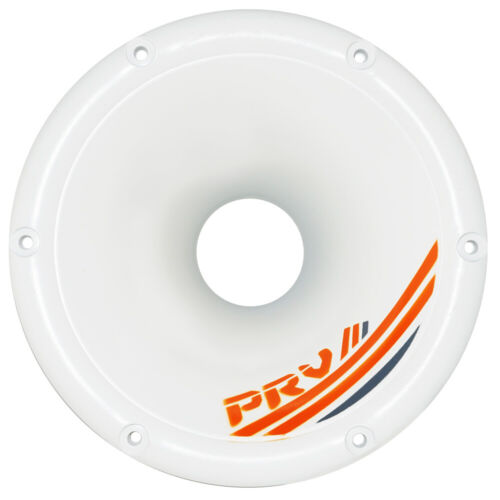

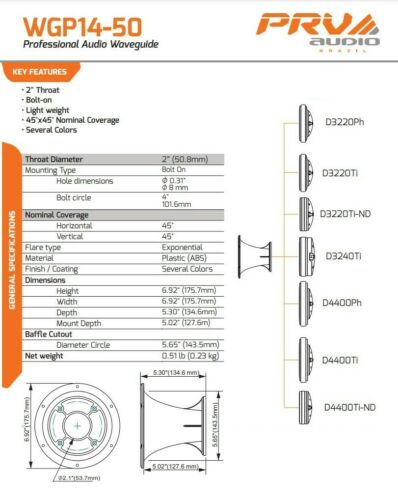

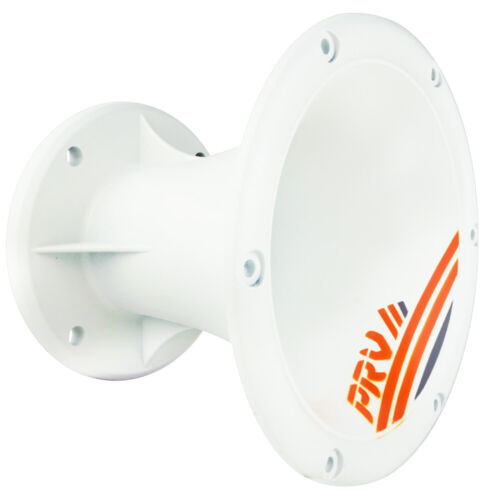

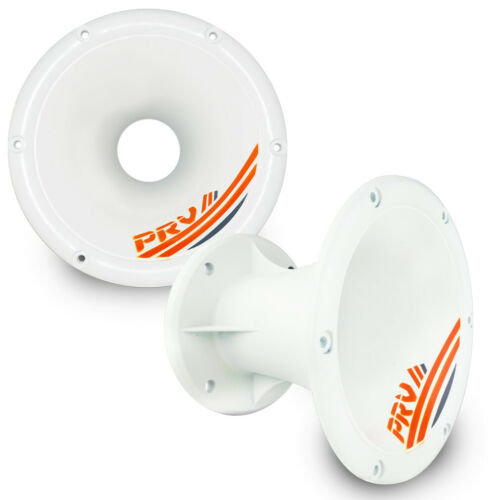

1x WGP14-50 White2"Exit Horn
Features
The powerful D3220Ti PRV Audio pro audio compression driver features a 2? exit supported by a 3? voice coil allows for accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a lightweight, yet durable design and offers a more natural sound for high SPL applications.
The D3220Ti is designed to ensure a quality sound and long-lasting play in your large environment applications.
Highlights
- Throat Diameter: 2?
- Type: Bolt-On
- Nominal Impedance: 8?
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts
Technical Details
GENERAL SPECIFICATIONS
Exit Throat Diameter | 2 (50 mm) |
Nominal impedance | 8 Ohms |
Rated AES Power Handling (RMS) | 110 Watts |
Program Power | 220Watts |
Sensitivity 2.83V at 1m | 108 dB |
Recommended Hi Pass Crossover** **For Full Power Handling |
1600 Hz** **12db Per Octave Crossover |
Frequency Response at -10dB | 1,200 17,000 Hz |
Voice Coil Diameter | 3(76.2 mm) |
Voice Coil Wire | Copper |
Voice Coil Former Material | Kapton |
Diaphragm Material | Titanium |
Flux Density | 1.80 T |
Magnet Material | Ferrite |
