INCLUDES: 1x D3220Ph PRO AUDIO PHENOLIC Compression Driver 1x WGP14-50PRWhite Waveguide Horn Features: The PRV Audio D3220Ph,...
Vendor: PRV Audio
SKU: D3220PH--WGP14-50PR
Availability: Out Of Stock
Product Type: Consumer Electronics
$124.82
$124.82
Please hurry! Only 0 left in stock
Subtotal: $124.82
10 customers are viewing this product

Free Shipping

Free shipping to 48 contiguous US States on most orders

Description
Description
x

INCLUDES:

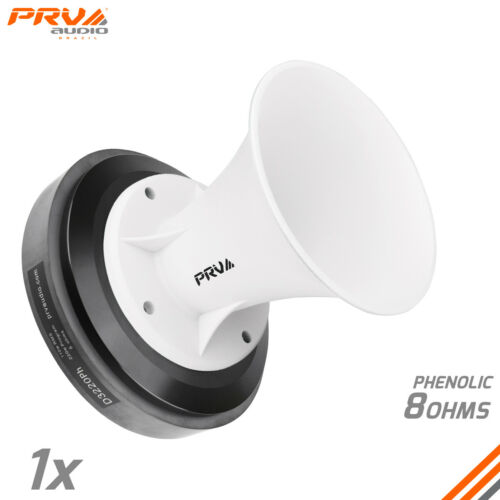

1x D3220Ph PRO AUDIO PHENOLIC Compression Driver
1x WGP14-50PRWhite Waveguide Horn

Features:

The PRV Audio D3220Ph, pro audio phenolic compression driver offers unsurpassed vocal and midrange reproduction. The specially designed phenolic diaphragm on a Kapton former offers a smooth sound required for proper voice production systems.

The D3220Ph with a 2 opening and large 3 voice coil is perfect for large venue loudspeaker enclosures or line array systems where high sound quality and SPL are required. 4 M6 bolt mounts permit mounting to most 2 waveguides. D3220Ph is designed to ensure a quality sound and long-lasting play in most any environment.

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 2 (50 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 110 Watts
Program Power 220Watts
Sensitivity 2.83V at 1m 109 dB
Recommended Hi Pass Crossover**
**For Full Power Handling		 800 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 650 7,500 Hz
Voice Coil Diameter 3(76.2 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Phenolic resin
Flux Density 1.80 T
Magnet Material Ferrite
